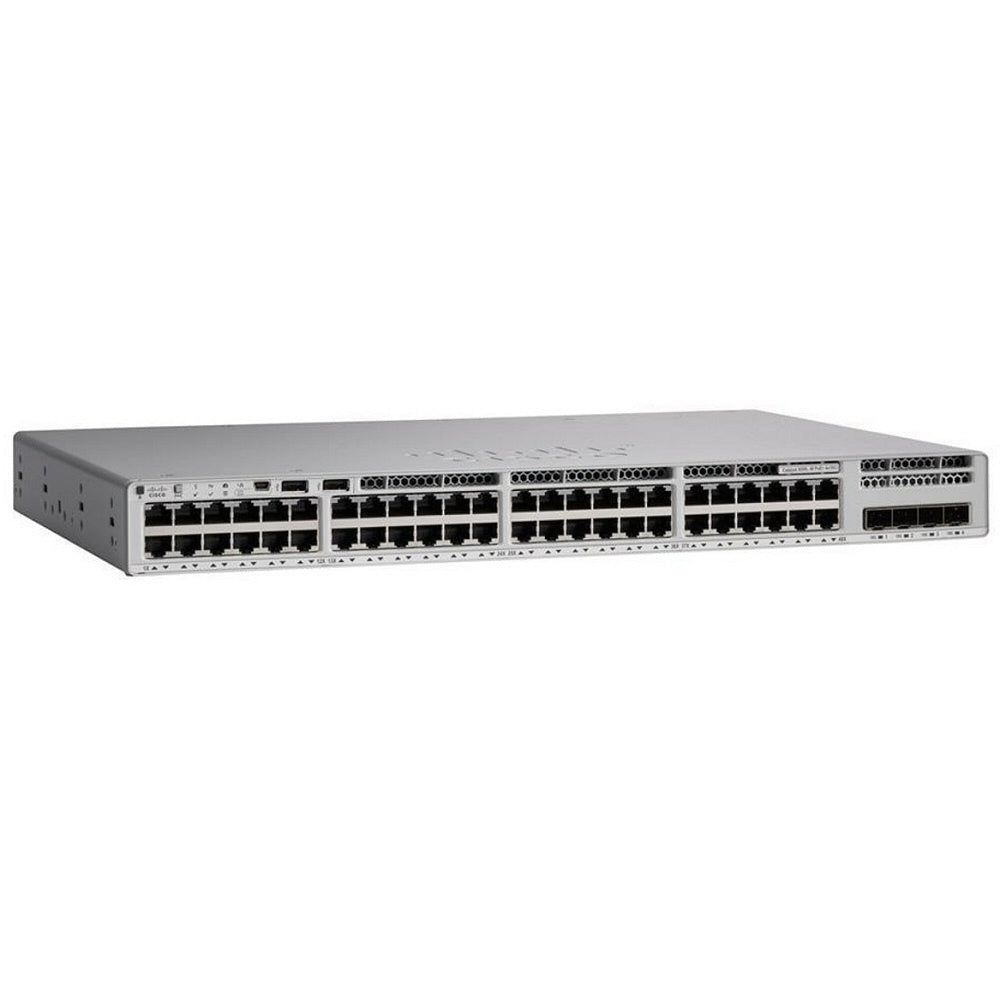

Cisco Catalyst C9200L-48T-4X-E 48 Port Managed Switch
Regular price
£3,278.99
£2,732.51 EX. VAT
Couldn't load pickup availability
Large order enquiry Request Quotation here
Delivery Prices
| Shipping Option | Dispatch Days | Delivery Time | Price |
| Economy | Mon to Fri | 2-3 Days | £4.95 |
| Next Day | Mon to Fri | 1 Day | £5.95 |
| Delivery days are Monday to Friday - Excludes Sat and Sun | |||
The Cisco Catalyst 9200 Series switch can help customers simplify complexity,optimize IT,and reduce operational costs by leveraging intelligence,automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48T-4X-E model has 48 ports 1G data with 4x 10G SFP+ fixed uplinks. Licensing is required.
Main Specifications
Product Description Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable
Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Performance Stacking bandwidth:80 Gbps ¦Switching capacity:176 Gbps ¦Forwarding rate:261.9 Mpps
Capacity Virtual networks:1 ¦IPv4 routes:11000 ¦IPv4 routing table entries:3000 ¦IPv6 routing table entries:1500 ¦Multicast scale:1000 ¦ACL scale entries:1500 ¦FNF entries:16000 ¦VLANs supported:1024 ¦Switched virtual interfaces (SVIs):512 ¦QoS hardware queues per port:8
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF,RIP-1,RIP-2,EIGRP,VRRP,PIM-SM,EIGRP for IPv6,PIM-SSM,policy-based routing (PBR),RIPng,MSTP
Remote Management Protocol SNMP 1,RMON 1,RMON 2,SNMP 3,SNMP 2c,CLI,NETCONF,RESTCONF
Features Quality of Service (QoS),Cisco StackWise Technology,Rapid Per-VLAN Spanning Tree Plus (PVRST+),Shaped Round Robin (SRR),PXE support,Remote Switch Port Analyzer (RSPAN),NetFlow,Energy Efficient Ethernet,Management Information Base (MIB),Class of Service (CoS),Flexible NetFlow (FNF),802.1x authentication,DiffServ Code Point (DSCP) support,MACsec support,6MB packet buffer,Control plane protection (CoPP),Switched Port Analyzer (SPAN),Embedded Event Manager (EEM),Protocol Independent Multicast (PIM),First Hop Security (FHS),PVLAN support,Committed Information Rate (CIR)
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.3x,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.1s,IEEE 802.3bz
Power AC 100-240 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 4.4 cm x 28.8 cm
Weight 5 kg
Main Specifications
Product Description Cisco Catalyst 9200L - Network Essentials - switch - 48 ports - Managed - rack-mountable
Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink)
Performance Stacking bandwidth:80 Gbps ¦Switching capacity:176 Gbps ¦Forwarding rate:261.9 Mpps
Capacity Virtual networks:1 ¦IPv4 routes:11000 ¦IPv4 routing table entries:3000 ¦IPv6 routing table entries:1500 ¦Multicast scale:1000 ¦ACL scale entries:1500 ¦FNF entries:16000 ¦VLANs supported:1024 ¦Switched virtual interfaces (SVIs):512 ¦QoS hardware queues per port:8
MAC Address Table Size 16000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol OSPF,RIP-1,RIP-2,EIGRP,VRRP,PIM-SM,EIGRP for IPv6,PIM-SSM,policy-based routing (PBR),RIPng,MSTP
Remote Management Protocol SNMP 1,RMON 1,RMON 2,SNMP 3,SNMP 2c,CLI,NETCONF,RESTCONF
Features Quality of Service (QoS),Cisco StackWise Technology,Rapid Per-VLAN Spanning Tree Plus (PVRST+),Shaped Round Robin (SRR),PXE support,Remote Switch Port Analyzer (RSPAN),NetFlow,Energy Efficient Ethernet,Management Information Base (MIB),Class of Service (CoS),Flexible NetFlow (FNF),802.1x authentication,DiffServ Code Point (DSCP) support,MACsec support,6MB packet buffer,Control plane protection (CoPP),Switched Port Analyzer (SPAN),Embedded Event Manager (EEM),Protocol Independent Multicast (PIM),First Hop Security (FHS),PVLAN support,Committed Information Rate (CIR)
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.1D,IEEE 802.1Q,IEEE 802.3ab,IEEE 802.1p,IEEE 802.3x,IEEE 802.3ad (LACP),IEEE 802.1w,IEEE 802.1x,IEEE 802.1s,IEEE 802.3bz
Power AC 100-240 V (50 - 60 Hz)
Power Redundancy Optional
Dimensions (WxDxH) 44.5 cm x 4.4 cm x 28.8 cm
Weight 5 kg
This product is covered by a manufacturer Limited Lifetime Warranty
