Why Your APC UPS Is Telling You It's Time
Battery failure accounts for over 80% of APC UPS service calls. That single statistic should reframe how you think about UPS maintenance. The battery is not a "set and forget" component; it is the most likely point of failure in your entire power protection setup.
Your APC UPS will tell you when the battery is reaching end-of-life. The most common signals include a persistent audible beep, a front-panel fault LED (often amber or red), and software alerts pushed through APC PowerChute. If you are running PowerChute Business Edition or Personal Edition, you may also receive email notifications or on-screen warnings well before the battery fails completely.
The RBC7 has an expected service life of 3 to 5 years. Scheduling replacement before failure, rather than reacting to it, is the difference between a controlled five-minute swap and an emergency scramble while critical systems sit unprotected. This matters especially for NHS trusts, schools, local councils, and SMEs running multiple UPS units where unplanned downtime carries real operational and financial risk.
Over 60 million UPS units worldwide are estimated to be carrying batteries at or near end-of-life. Proactive replacement is standard practice across every sector that depends on uninterruptible power.
This guide covers everything you need to complete an RBC7 replacement: the pre-assembled cartridge swap (fastest, no tools), self-assembly from individual cells (more economical, with an upgrade option), post-installation checks, and UK-specific legal disposal requirements.
What Is the APC RBC7 and Which UPS Models Use It?

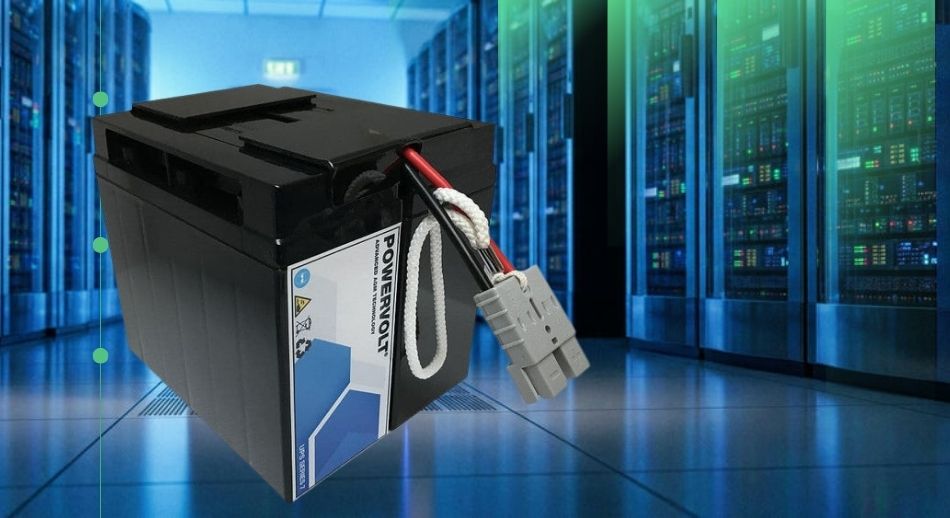

The RBC7 (Replacement Battery Cartridge #7) is a standardised battery pack consisting of two 12V 18Ah sealed lead-acid (SLA/AGM) batteries wired in series. Connected together, they produce a 24V battery pack that slots directly into a range of APC UPS models.
A pre-assembled RBC7 cartridge includes an Anderson SB50 connector and a 100A fuse. There is no loose wiring and no tools required for the swap. The cartridge measures approximately 173mm (L) x 152mm (W) x 183mm (D) and weighs around 11.8 kg, so it is manageable for one person but worth being prepared for the weight.
The RBC7 is compatible with a wide range of APC UPS models, including:
- SMT1500, SMT1500C, SMT1500US
- SUA1500, SUA750XL
- SU1400, SU1400NET, SU1000XL
- SU1250, SU1250RM
- BP1400, DLA1500, VS1400
- Various regional variants of the above
Before ordering, always verify the RBC number against the model label on the rear of your UPS. Installing the wrong RBC number can void the UPS warranty, damage the unit, or create a safety hazard. The model number is printed on a label on the back panel of the UPS. Cross-reference this with APC's RBC compatibility list or the documentation that came with your unit. If the label says RBC7, you are in the right place. If it says anything else, stop and confirm before proceeding.
OEM vs. Compatible RBC7 Batteries: What UK Buyers Should Know
Genuine APC OEM RBC7 cartridges carry the manufacturer's warranty, but they come at a premium. For organisations managing multiple UPS units, the cost adds up quickly.
Third-party compatible RBC7 assemblies are typically 20 to 70% less expensive than OEM equivalents. They use equivalent SLA/AGM cells and, when sourced from a reputable supplier, perform identically in day-to-day operation. The key is knowing what to check before you buy:
- Confirm the cells are 12V 18Ah AGM (not gel, not flooded)
- Verify the Anderson SB50 connector and 100A fuse are included
- Check the supplier's warranty terms and return policy
Retrofitting with a compatible cartridge rather than replacing the full UPS unit typically saves 30 to 50% compared to buying a new UPS. For most business and IT users, a quality compatible RBC7 from a reputable UK supplier is a cost-effective and reliable choice, provided the specifications match exactly.
As an example, the RBC7 UPS Replacement battery pack for APC from hardwarexpress (trading since 2004) is a stocked, competitively priced compatible option with same-day shipping on most orders and next-day UK delivery. For organisations ordering via purchase order, including NHS trusts, schools, and universities, dedicated support is available.
Hot-Swap Explained: Replace Your RBC7 Without Any Downtime
The RBC7 is hot-swappable. This means your connected servers, switches, network equipment, and other critical hardware remain live throughout the entire battery replacement process. You do not need to shut anything down.
During the swap, the UPS continues to pass mains power through to your connected equipment. The only thing that changes is that battery backup protection is temporarily unavailable while the old cartridge is out and the new one is being installed. This is an important distinction: hot-swap does not mean the UPS is providing battery backup during the process. It means your equipment stays powered via mains, and backup protection resumes the moment the new cartridge is connected.
For IT managers, NHS facilities teams, and data centre staff who cannot tolerate downtime, this is the critical reassurance. You will not lose a single second of uptime on your connected equipment.
A few practical recommendations before you start:
- Inform relevant staff that battery backup will be briefly unavailable
- Confirm mains power is stable (avoid swapping during a storm or known grid maintenance)
- Complete the swap in a single, uninterrupted session; do not leave the UPS mid-process
Hot-swap capability is a key reason the RBC7 is so widely deployed in always-on environments across healthcare, education, financial services, and government.
Step-by-Step: Installing a Pre-Assembled RBC7 Cartridge
If you have a pre-assembled RBC7 cartridge, the swap is straightforward and requires no tools. Here is the process, step by step.
Step 1: Locate the Battery Compartment
On most compatible APC models, the battery compartment is accessed via the front panel or the base of the unit. Tower models typically have a front-facing panel that unclips or unscrews by hand. Rackmount models may require you to slide the unit forward to access the front. If you are unsure, consult the documentation for your specific UPS model.
Step 2: Disconnect the Anderson SB50 Plug
Locate the Anderson SB50 connector joining the old battery cartridge to the UPS. Pull the connector firmly but straight. Do not yank or twist the wiring harness, as this can damage the internal connector socket.
Step 3: Remove the Old Cartridge
Slide the old cartridge out carefully. Aged batteries can swell over time, making removal tighter than expected. If you feel resistance, do not force it. Gently rock the cartridge side to side while pulling steadily until it clears the compartment. The cartridge weighs around 11.8 kg, so support it with both hands.
Step 4: Insert the New Cartridge
Slide the new pre-assembled RBC7 cartridge into the compartment until it seats fully. It should sit flush with the compartment opening.
Step 5: Reconnect the Anderson SB50 Plug
The Anderson SB50 connector is keyed, so it can only connect in the correct orientation. Push it in until it clicks securely into place. If it does not click, check the alignment and try again. Do not force it at an angle.
Step 6: Close the Battery Compartment
Replace the front panel or base cover. No tools are required for a standard pre-assembled cartridge swap. Confirm the UPS powers on normally and that the battery fault indicator clears after reconnection. If the fault LED persists, see the post-installation checks section below.
Self-Assembly: Building Your Own RBC7 from Individual Cells
Self-assembly is the more economical route and opens the door to a runtime upgrade. The process involves reusing the Anderson SB50 connector, 100A fuse, and wiring harness from your old cartridge with two new 12V 18Ah SLA/AGM cells.
Voltage-Check Your New Cells First
Before you begin assembly, use a multimeter to check the voltage of each new cell. Both should read above 12.6V and be within 100mV of each other. Matched cells ensure balanced charging and maximum lifespan. If one cell reads significantly lower than the other, do not use the pair together.
Understand the Wiring
The wiring harness is colour-coded: red connects to positive (+) terminals and black connects to negative (−) terminals. Correct polarity is non-negotiable. Reversing the connections will damage the UPS and could create a fire risk.
Wire the two 12V cells in series by connecting the positive terminal of cell 1 to the negative terminal of cell 2. The remaining positive and negative terminals connect to the corresponding red and black leads of the wiring harness, producing the required 24V output.
Assembly Sequence: Harness Before Fuse
This is a safety-critical step that many guides skip entirely. Connect the cable harness to the battery terminals before installing the 100A fuse. If you connect the fuse first, you create a live circuit before the harness is properly seated, which risks short-circuiting the assembly. Harness first, fuse second, every time.
The Upgrade Option
Here is something most guides do not mention: you can replace the standard 12V 17Ah or 18Ah OEM cells with 12V 21Ah cells. This delivers approximately 24% more runtime from the same UPS. The physical dimensions of 21Ah cells are typically identical to the 18Ah originals, so they fit the same compartment. This is a popular upgrade among IT professionals who want extended backup time without replacing the UPS itself.
Self-assembly requires basic electrical confidence. If you are not comfortable working with battery terminals and a multimeter, a pre-assembled cartridge is the safer and faster choice.
Post-Installation Checks: Don't Skip These Steps
With the new RBC7 installed, there are several checks you should complete before walking away.
Run a UPS Self-Test
Initiate a self-test immediately after installation. On most APC models, this is done by pressing and holding the front-panel test button, or through APC PowerChute software. The self-test briefly switches the UPS to battery power and back, confirming the new cartridge is functioning correctly.
Allow Full Charge Time
A new RBC7 typically requires 8 to 16 hours of charge time on mains power to reach full capacity. Do not rely on the UPS for critical backup during this initial charging period. Leave it connected to mains and let it charge undisturbed.
Verify Fault Indicators Have Cleared
Check that all battery fault LEDs and audible alarms have cleared. If a fault indicator persists after reconnection, power cycle the UPS and recheck the Anderson SB50 plug seating. Confirm the connector has clicked fully into place and that polarity is correct.
Log the Replacement Date
Record the replacement date in your maintenance log. The RBC7 has a 3 to 5 year service life, so scheduling the next replacement in advance prevents future reactive failures. Note the battery serial number or batch details for warranty reference.
For organisations managing multiple UPS units (NHS trusts, schools, councils, data centres), consider building a rolling replacement schedule based on installation dates rather than waiting for fault alerts. This approach eliminates surprises and spreads cost over time.
UK Legal Disposal: What to Do with Your Old RBC7 Battery
In the UK, spent UPS lead-acid batteries are classified as hazardous waste. Disposal is governed by the Waste Electrical and Electronic Equipment (WEEE) Regulations 2013, and getting it wrong carries real consequences.
Placing old UPS batteries in general waste, skips, or standard recycling bins is illegal. Businesses and individuals found disposing of lead-acid batteries improperly can face significant fines. For NHS trusts, schools, councils, and businesses, there is a legal duty of care to ensure hazardous waste is handled correctly.
Correct Disposal Routes
- Registered battery recycler: Specialist recyclers will collect and process old lead-acid batteries in compliance with UK regulations.
- Local authority hazardous waste collection: Most councils operate collection points or scheduled collection days for hazardous waste, including batteries.
- Retailer take-back schemes: Many battery suppliers and electrical wholesalers in the UK accept old lead-acid batteries for recycling. It is worth confirming this at the point of purchase.
Why Recycling Matters
Up to 90% of the material in a lead-acid UPS battery can be reclaimed. Lead is smelted and reused, polypropylene cases are recycled into new battery casings, and sulfuric acid electrolyte is resold as commodity acid. Recycling is a legal obligation and an effective means of recovering valuable materials.
If you are responsible for waste management at your organisation, keep disposal receipts and recycler certificates on file. They serve as evidence of compliance if your waste handling is ever audited.
Keep Your UPS Protected: Final Thoughts on RBC7 Maintenance
Replacing the RBC7 on schedule is the single most cost-effective UPS maintenance action you can take. With battery failure behind over 80% of APC UPS service calls, a fresh cartridge is the best insurance your connected equipment has.
Retrofitting a replacement battery cartridge saves 30 to 50% compared to replacing the entire UPS unit. For businesses of all sizes, from a single office UPS to a fleet of units across multiple sites, this is the smart financial choice.
To recap, you have two clear installation paths:
- Pre-assembled cartridge: Fastest option, no tools required, recommended for most users. Ideal when you need a quick, reliable swap with zero fuss.
- Self-assembly from individual cells: More economical, and it opens the door to upgrading to 21Ah cells for approximately 24% more runtime. Best suited to those comfortable with basic electrical work.
Both paths benefit from the RBC7's hot-swap capability: no downtime, no server shutdown, no disruption to connected equipment.
Before ordering, verify your RBC number against the label on the rear of your UPS. Source from a reputable UK supplier with strong stock availability and fast delivery to avoid unnecessary delays.
With the right cartridge, the right guide, and a few minutes of time, RBC7 replacement is a straightforward task well within the capability of any IT professional or technically minded facilities manager. Schedule it, complete it, log it, and your UPS will be ready for the next three to five years of reliable service.
