GP1272 vs GP1272F2: What's Actually Different?

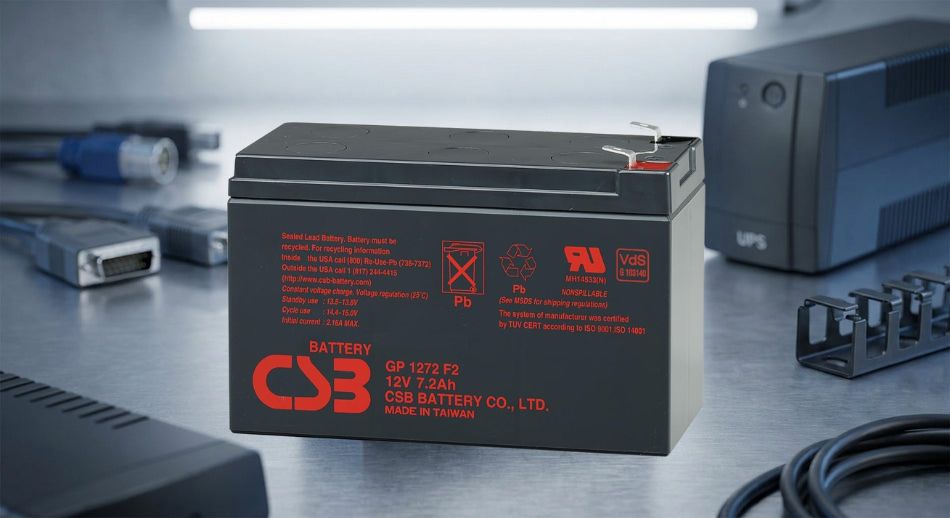

Both the GP1272 and GP1272F2 are CSB Battery Co. 12V 7.2Ah VRLA AGM sealed lead acid batteries from the same General Purpose series. Same chemistry, same capacity, same voltage. They are not different product lines.
The "F2" suffix is purely a terminal designation. F2 denotes a Faston Tab 250 (6.35mm wide) terminal, while the base GP1272 without a suffix may ship with either F1 (4.75mm) or F2 (6.35mm) terminals. That ambiguity is the root of most ordering mistakes.
Specifying "GP1272F2" on an order removes all guesswork: you are explicitly requesting the larger 6.35mm terminal variant. This article covers two points that trip up buyers repeatedly: the F1 vs F2 terminal distinction, and the separate "28W vs 7.2Ah" labelling confusion that makes the same battery appear to be two different products.
F1 vs F2 Terminals: The Spec Most People Get Wrong
The F2 terminal is 0.250 inches (6.35mm) wide. The F1 terminal is 0.187 inches (4.75mm) wide. That gap is roughly 1/16 of an inch, and it is enough to make the two completely non-interchangeable.
An F1 connector pushed onto an F2 tab will not grip properly. The result is a loose connection that can cause intermittent faults, system failure in alarm panels, or a UPS that drops out under load. It is a small physical difference with serious practical consequences.
As a general rule, most UPS backup power applications use F2 terminals. Most emergency lighting applications use F1 terminals. "Most" is not "all," so always check your existing battery or equipment connector before placing an order.
Maximum discharge current also differs between the two terminal types. F2 terminals support up to 130A; F1 terminals handle up to 100A. For standard alarm and UPS standby use, you will never approach those figures. In high-drain applications, however, the difference is meaningful.
How to Identify Your Terminal Type
The simplest method is to measure the tab width on your existing battery with a ruler or callipers. If the tab is roughly 4.75mm across, you have F1. If it is roughly 6.35mm, you have F2. Alternatively, check the label on the battery itself; CSB prints the terminal designation in the model number.
For UPS and alarm applications requiring the 6.35mm F2 terminal, the CSB GP1272 F2 battery 12V 7.2Ah is available with same-day shipping from stock.
The 28W vs 7.2Ah Confusion Explained
Some GP1272 and GP1272F2 batteries are labelled "12V 28W" rather than "12V 7.2Ah." These are two different rating methods, and in some cases they point to genuinely different sub-variants.
The "28W" figure refers to watts-per-cell output during a 15-minute high-rate discharge at 1.67V per cell at 25°C. It is a power rating used in UPS sizing calculations. The standard GP1272F2, by contrast, is rated at 7.2Ah at the 20-hour rate. These two numbers describe different things.
The "28W variant" (sometimes labelled GP1272F2 25W or 28W) is a genuinely lower-capacity sub-variant rated at approximately 7.0Ah. CSB has confirmed this directly to buyers. It is not simply the same 7.2Ah battery described differently.
Internal resistance tells the story clearly. The standard 7.2Ah version measures approximately 23.0mΩ. The 28W/25W variant sits at approximately 25.8mΩ. The standard version delivers better performance under sustained load.
Practical buying advice: if your equipment specifies 7.2Ah, order the standard GP1272F2. If it specifies 28W, check the original battery label carefully. Determine whether the OEM means the high-rate power rating or the lower-capacity sub-variant before committing to a purchase.
Key Specifications at a Glance
- Nominal voltage: 12V
- Nominal capacity: 7.2Ah at the 20-hour rate (1.75V per cell, 25°C)
- Dimensions: 150.9mm (L) × 64.8mm (W) × 94.3mm (H)
- Overall height with terminals: 98.6mm
- Weight: approximately 2.40kg
- Design life: 3 to 5 years in standby service at 25°C; more than 260 cycles at 100% depth of discharge in cyclic service
- Self-discharge: less than 10% capacity loss after 90 days at 25°C, making it low-maintenance for seasonal or backup applications
- Float charging voltage: 13.5 to 13.8 VDC per unit at 25°C
- Cycle service charging: 14.4 to 15.0 VDC per unit at 25°C
Charger compatibility matters. If your UPS or alarm panel charges outside these voltage ranges, the battery will either undercharge (reducing runtime) or overcharge (reducing lifespan). Always verify your charger output before fitting a replacement.
The AGM construction delivers up to 99% gas recombination efficiency, making the battery fully sealed and maintenance-free. No topping up, no venting requirements for normal operation.
The flame-retardant ABS case is rated UL94-V0, suitable for enclosed environments including server rooms, alarm panels, and emergency lighting cabinets. The battery also carries VdS certification No. G120030, a German safety standard widely recognised for fire and security alarm compliance across Europe. For alarm installers and facilities managers, that VdS number is often a project requirement, not an optional extra.
Common Applications and Cross-Reference Replacements
The GP1272F2 is used in over 52 countries across a wide range of applications: UPS systems, intruder alarm panels, fire alarm control panels, emergency lighting, medical equipment, wheelchairs, and communications equipment.
It serves as a direct drop-in replacement for several widely used batteries, including the Yuasa NP7-12, Panasonic LC-RA1212P, and APC RBC2, provided voltage, dimensions, and terminal type match. That last point is critical. A Yuasa NP7-12 fitted with F1 connectors is not compatible with a GP1272F2 without a terminal adapter. Always verify terminal type before cross-referencing.
With 245,284 burglaries recorded in England and Wales in the year ending March 2025, maintaining a functioning alarm backup battery is a genuine safety priority. A dead battery in your alarm panel means the system fails the moment mains power drops, precisely when you need it most.
In the broader UK fire alarm battery market, sealed lead acid batteries still hold approximately 65 to 70% of volume share. Lithium-ion (LiFePO₄) has grown from under 5% in 2020 to an estimated 15 to 18% in 2025, but SLA remains the standard for most existing alarm and UPS installations. If your panel was designed for a 12V 7.2Ah SLA, that is what it expects.
How to Order the Right Battery First Time
Four steps will prevent the most common ordering mistakes:
- Identify your terminal type. Check the label on your existing battery or measure the tab width. 4.75mm = F1. 6.35mm = F2.
- Confirm capacity. Does your equipment specify 7.2Ah or 28W/25W? Use the guidance above to select the correct sub-variant.
- Verify dimensions. The GP1272F2 measures 150.9mm × 64.8mm × 94.3mm (not including terminals). Confirm this fits your battery compartment before ordering.
- Check charging voltage compatibility. Your charger or UPS must support 13.5 to 13.8V float or 14.4 to 15.0V cycle charging.
For UK buyers, professional call-out fees to replace an alarm battery typically run £99 to £109. The battery itself costs £12 to £30. That makes DIY replacement a straightforward saving of £70 to £100 per service, and the job itself takes minutes with the right battery in hand.
hardwarexpress has stocked CSB batteries since 2004, holds high stock levels for same-day despatch, and offers next-day UK delivery. Trade accounts and purchase orders are available for NHS, schools, universities, and businesses.
GP1272 vs GP1272F2: The Short Answer
The GP1272 and GP1272F2 are the same battery. The F2 suffix specifies the 6.35mm Faston Tab 250 terminal. Always use "GP1272F2" when ordering to avoid receiving an F1-terminal unit by mistake.
The two most common mistakes buyers make are ordering the wrong terminal type and confusing the 28W power rating with the 7.2Ah capacity rating. Both are avoidable with a quick check of your existing battery label.
For most UPS and alarm panel replacements in the UK, the standard GP1272F2 (7.2Ah, F2 terminal) is the correct choice. Check stock and order from hardwarexpress for fast UK delivery and expert support if you need help confirming your specification.
