What Is the Yuasa SW280 and Who Is It For?

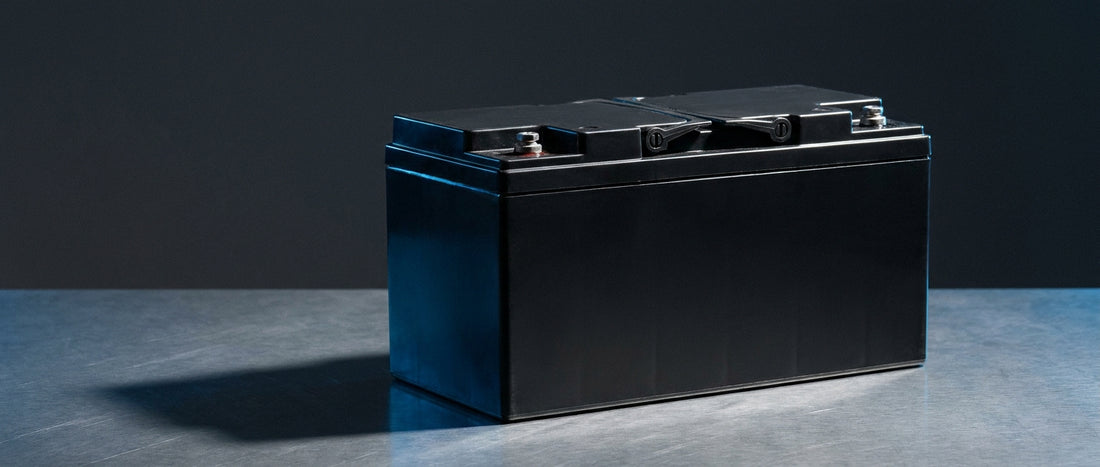

The Yuasa SW280 is a 12V Industrial VRLA (Valve Regulated Lead Acid) battery from Yuasa's SW High Rate series, engineered specifically for fast-discharge applications requiring between 10 and 30 minutes of reliable runtime. It delivers constant high-rate power rather than deep-cycle or long-duration discharge.
Core use cases include UPS systems in data centres, NHS and healthcare facilities, emergency lighting, and fire and security infrastructure. With UK data centre capacity expanding rapidly and healthcare organisations placing increasing emphasis on backup power resilience, the SW280 remains a highly relevant choice in 2026.
This article breaks down the official data sheet so trade buyers, IT professionals, and installers can make an informed purchasing decision without wading through multiple PDF revisions.
Understanding the 280W Rating: What It Actually Means
The "280W" in the product name refers to constant power output per block at the 10-minute discharge rate, measured to a cut-off voltage of 9.6V at 20°C. This is not a continuous or indefinite rating. It tells you how much power the battery can sustain over a defined, short-duration window.
UPS batteries are rated in watts rather than amp-hours for a practical reason: UPS systems draw constant power loads. A watt-based rating maps directly to the load you need to support, making it far more useful for sizing calculations than a traditional Ah figure.
That said, the SW280 has a nominal capacity of approximately 7.6 to 7.9Ah at the 20-hour rate. Some distributor listings cite up to 9Ah; buyers should reference the latest Yuasa datasheet revision to confirm the figure for their specific batch.
On a per-cell basis, the SW280 delivers 46.7W per cell, with an internal impedance of 14mΩ measured at 1kHz. Maximum discharge limits are 150A for 1 second and 50A for 1 minute. These figures are critical for installers sizing protection devices and cabling.
The practical takeaway: a 280W-rated battery in a correctly matched UPS will sustain the load for roughly 10 minutes. Runtime drops sharply at higher loads and extends at lower ones. Always size your battery string against the actual VA or watt draw of the protected equipment, not a rough estimate.
Full Technical Specifications at a Glance
- Dimensions: Length 151mm (±1mm), Width 65mm (±1mm), Height including terminals 97.5mm (±2mm)
- Weight: 2.6kg
- Float charge voltage: 13.65V ±1% per block (2.275V per cell) at 20°C, with a temperature correction of -3mV/cell/°C from 20°C
- Cyclic (boost) charge voltage: 14.5V ±3% per block (2.42V per cell) at 20°C, with a temperature correction of -4mV/cell/°C from 20°C
- Float charge current limit: No stated limit (per the 2020 datasheet revision)
- Cyclic charge current limit: 1.75A
- Operating temperature (storage): -20°C to +60°C
- Operating temperature (charge): -15°C to +50°C
- Operating temperature (discharge): -20°C to +60°C
- Self-discharge rate: Approximately 3% capacity loss per month at 20°C
- Installation flexibility: Operable in any orientation up to 90° from upright; continuous inverted use is excluded
The low self-discharge rate is worth noting for stockholders and distributors. Batteries can sit on shelves for several months without requiring a top-up charge, provided storage temperatures remain close to 20°C.
Float vs Cyclic Charging: What Installers Need to Know
Float charging is a continuous, low-current maintenance charge used in standby UPS applications. The battery stays topped up and ready to deliver power the moment mains supply fails. Cyclic charging, by contrast, involves repeated charge-discharge cycles in active-use applications.
The SW280 is primarily designed for float/standby use. Cyclic operation is possible, but the 1.75A charge current limit must be respected to prevent damage. Exceeding this accelerates grid corrosion and shortens service life.
Temperature matters significantly. Capacity reduces in cold environments (common in unheated UK plant rooms), while elevated temperatures shorten overall battery life. Charge voltage must be adjusted by -3mV/cell/°C for float or -4mV/cell/°C for cyclic from the 20°C reference point. For installations in non-climate-controlled spaces, this correction is not optional.
If the low-pressure venting system activates during normal operation, it indicates an overcharge condition. While the vent is a safety feature, its activation should prompt an immediate investigation of the charger settings.
EUROBAT Classification and Design Life: Clearing Up the Confusion
There is a genuine discrepancy in how the SW280's design life is listed across the market. Some distributor listings cite 3 to 5 years under a "Standard Commercial" EUROBAT classification. The official Yuasa UK product page, however, lists 6 to 9 years under a "General Purpose" EUROBAT classification.
EUROBAT classification is an industry-standard framework for expected battery service life under defined float conditions at 20°C. It is not a warranty period. The difference between a 3-to-5-year and a 6-to-9-year classification has real implications for replacement scheduling and total cost of ownership.
Buyers should verify the classification against the latest official Yuasa datasheet revision. Classifications can change between revisions, and relying on outdated distributor data could lead to premature replacements or, worse, unexpected failures.
For facilities managers and procurement teams in NHS, education, and government settings, the 6-to-9-year classification (if confirmed) supports longer replacement intervals and lower lifecycle costs. It is also worth noting that GS Yuasa launched the SWL+ series in 2025 with Hybrid Pure Lead technology and a 15-year design life at 20°C, offering a clear upgrade path for critical applications where longer service intervals justify the higher upfront cost.
Construction, Safety, and Certifications
The SW280 uses Absorbed Glass Mat (AGM) construction. The electrolyte is held within the glass mat separator, meaning there is no free acid. This makes the battery spill-proof and safe for installation in enclosed equipment rooms, server cabinets, and wall-mounted enclosures.
Lead Calcium Grid technology reduces water loss and lowers self-discharge, both of which contribute to the battery's extended service life in standby applications.
Gas recombination is a key safety feature: 99% of gas generated during normal use is recombined internally. The valve-regulated design only vents under abnormal overcharge conditions, keeping hydrogen emissions to a minimum in enclosed spaces.
The standard case material is ABS rated to UL94:HB. A flame-retardant UL94:V0 option is available for emergency lighting, fire alarm, and security system installations where building regulations demand higher fire safety compliance.
Certifications include ISO9001 (Quality Management), ISO14001 (Environmental Management), ISO45001 (Occupational Health & Safety), UL listing, and compliance with IEC60896-21+22 for stationary lead-acid batteries. ISO14001 certification is increasingly relevant for procurement teams in NHS, government, and education sectors that must demonstrate sustainability and end-of-life recycling compliance.
Cross-Reference Guide: SW280 Compatible Alternatives
The Yuasa SW280 is a direct cross-reference for the CSB HR1234W, FIAMM 12FGHL34, and BB SH1228W. If you are replacing any of these, the SW280 serves as a drop-in equivalent.
This matters because many UPS systems ship with OEM batteries that are simply rebadged versions of standard high-rate VRLA cells. The underlying specification is identical; only the label differs.
Before ordering, verify physical dimensions (151mm x 65mm x 97.5mm) and terminal type against your existing battery. Minor dimensional variations can exist across revisions, and confirming compatibility upfront reduces returns and installation delays.
The Yuasa SW280 Battery is available from UK stock with same-day shipping and next-day delivery, making it a practical choice for urgent UPS replacements where downtime must be minimised.
SW280 vs SWL and SWL+: Choosing the Right Yuasa High-Rate Battery
The SW280 is the proven, cost-effective entry point in the Yuasa high-rate VRLA family. It covers standard UPS, emergency lighting, and fire and security applications reliably and affordably.
The SWL series steps up from there, delivering up to 40% higher discharge capacity compared to equivalent standard VRLA products. If runtime or cabinet space is constrained, the SWL gives you more power from the same footprint.
The SWL+ series, launched by GS Yuasa in 2025, uses Hybrid Pure Lead technology to achieve a 15-year design life at 20°C. It is designed for mission-critical UPS deployments in data centres and healthcare, where replacement intervals and total cost of ownership are the primary concerns.
A simple decision framework:
- SW280: Budget-conscious standard applications
- SWL: Higher-density performance where space or runtime is tight
- SWL+: Long-life critical infrastructure where fewer replacements justify the premium
The global VRLA/AGM battery market is growing at 3.9% CAGR through 2035, driven largely by data centre expansion. Choosing the right battery tier is a commercially significant decision, not just a technical one.
Summary: Is the Yuasa SW280 the Right Battery for Your Application?
The SW280 delivers 280W of high-rate output in a compact, AGM VRLA package with flexible orientation, broad certifications (ISO9001, ISO14001, ISO45001, UL, IEC60896-21+22), and a strong track record across UPS, emergency lighting, and fire and security systems.
Before installation, verify the EUROBAT classification and charge voltage settings against the current official Yuasa datasheet. If design life and reduced maintenance intervals are priorities, consider the SWL+ upgrade path.
For trade buyers and facilities managers needing to confirm cross-reference compatibility, check stock availability, or discuss trade account pricing and bulk order support, contact hardwarexpress. Same-day dispatch from UK stock and next-day delivery options are available.
