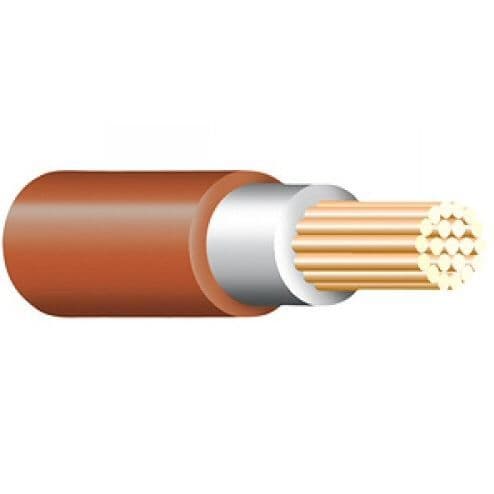

Tri-Rated Cable 16mm² - Red Various Lengths Available
The British standard Tri-Rated cable is sometimes referred to as panel wiring cable due to its application and purpose. It is a high temperature, flame retardant cable designed for use in many electrical applications where high quality electrical cables are required with a voltage rating of up to maximum 600v AC or 1000v DC volts . The cable features flexible plain annealed copper conductors and a circular high temperature PVC outer sheath. UL & CSA approved also to BS6231.
Standards
Flame propagation to BS EN 50265, IEC 60332-1
BS6231
UL 1015
BS EN 50525-2-31
Construction
Conductor: Flexible plain annealed copper conductors
Sheath: Circular high temperature PVC outer sheath in a large range of colours
Characteristics
Voltage Rating: up to maximum 600v AC or 1000v DC volts
Maximum 100 Amps
Temperature Limits: -30°C to +105°C
Approvals - UL Approved, CSA Approved, BSi Approved, RoHS, CE.
