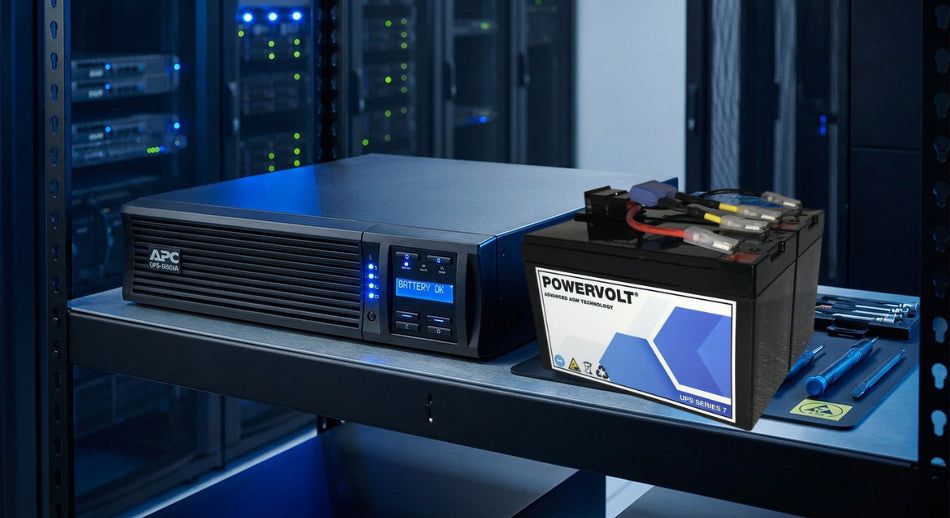

What Is the APC RBC48 and Which UPS Models Use It?
The APC RBC48 is a Replacement Battery Cartridge designed for APC Smart-UPS Line Interactive 750VA models. It serves as the internal power source that keeps connected equipment running during mains failures, and it is one of the most commonly replaced cartridges across UK business and public sector environments.
The RBC48 is compatible with a wide range of UPS models, including the SMT750, SMT750I, SMT750IC, SUA750, SUA750I, DLA750, DLA750I, FJT750I, and several regional variants such as the SMT750TW and SUA750TW. If you are unsure which cartridge your unit requires, open the battery compartment and check the label inside. The front-panel model number alone is not always sufficient to confirm the correct RBC reference.
Physically, the RBC48 is a 24V 7Ah sealed lead-acid (VRLA) battery pack consisting of two 12V batteries wired in series within a single housing. It measures approximately 137mm x 358mm x 157mm and weighs around 5kg. Every RBC48 cartridge ships fully assembled with all cables, connectors, and fuses included, so no tools or additional assembly are required.
Signs Your RBC48 Needs Replacing Right Now
Three definitive triggers indicate it is time to replace your RBC48. First, the Replace Battery LED on the front panel is illuminated. Second, the UPS fails its automatic self-test. Third, measured runtime under load has dropped below 50% of the original specification.
The APC Smart-UPS runs an automatic self-test approximately every 14 days. During this test, the unit briefly switches to battery power and evaluates capacity. If the battery cannot sustain the load, the UPS flags a failure through the front-panel LED indicators. A persistent audible alarm typically accompanies this warning. If your UPS is beeping, do not ignore it. That alarm means your battery can no longer provide reliable backup, and your equipment is at risk during the next power event.
Batteries account for over 80% of all APC UPS service calls, making proactive replacement the single most effective maintenance action you can take. Under optimal conditions (ambient temperature around 25°C), an RBC48 will last 3 to 5 years. Battery life halves for every 10°C above 25°C, so a UPS operating in a 35°C server room may need a new battery in under 2.5 years.
Waiting for a complete failure is never worth the risk. If your unit is approaching three years of service, schedule a replacement before the LED lights up.
How to Replace the APC RBC48: Hot-Swap Step-by-Step
One of the most valuable features of the RBC48 is its hot-swap capability. You can replace the battery without shutting down the UPS or disconnecting any protected equipment. For live server and network environments, this means zero downtime during the swap.
Follow these steps:
- Locate and open the battery compartment. On the Smart-UPS 750VA, the compartment is accessible from the front of the unit. Release the front bezel or battery cover as per your model's design.
- Disconnect the old battery connector. Note the polarity and connector orientation before unplugging. The connector is keyed, but take a moment to observe how it sits.
- Slide out the old RBC48 cartridge. The pack weighs approximately 5kg. In rack-mounted environments, a second person makes this easier and safer.
- Slide in the new RBC48 cartridge. Align the cartridge with the guides inside the compartment and push it firmly into place.
- Reconnect the battery connector. Ensure it clicks securely into position.
- Close the compartment and allow the UPS to charge. The unit will perform an initial charge cycle before running a self-test. Allow several hours for a full charge before relying on the battery for backup.
- Reset the Replace Battery LED. This is a commonly missed step. Hold the self-test button on the front panel for a few seconds, or use APC PowerChute software to clear the alert. If you skip this, the LED will remain lit even with a new battery installed.
Safety note: VRLA batteries are sealed and spill-free, making them safe for indoor handling. Standard ESD (electrostatic discharge) precautions should still be observed when working near sensitive IT equipment.
OEM vs Compatible RBC48: Which Should UK Businesses Buy?
The OEM APC RBC48 cartridge carries a 2-year manufacturer warranty and guaranteed compatibility. UK pricing typically falls between £127 and £145 ex-VAT. For organisations with strict procurement policies tied to manufacturer warranties, the OEM option provides straightforward compliance.
Compatible alternatives offer significant savings. The Powervolt RBC48, for example, is available from approximately £58 ex-VAT, a saving of 20% to 70% compared to OEM pricing. These cartridges are supplied fully assembled with all cables, connectors, and fuses, making them genuine drop-in replacements.
There is an important distinction to understand. Some third-party suppliers sell individual 12V 7Ah cells separately, requiring you to reuse existing cables and hardware from the old cartridge. This is not a plug-and-play solution; it introduces installation risk and can void warranty claims. Always choose a fully assembled cartridge rather than loose cells.
For NHS trusts, schools, universities, and government bodies, a compatible cartridge with a 1-year warranty from a reputable UK supplier is a compliant and cost-effective procurement choice. Battery replacement costs typically account for 35% to 50% of total UPS lifecycle expenses, so choosing a quality compatible battery restores full UPS specification at a fraction of the cost of purchasing a new unit.
Hardwarexpress stocks the Powervolt RBC48 compatible cartridge. Every unit is tested and approved for installation, supplied complete with cables and fuses, backed by a 1-year warranty, and available for same-day dispatch.
How Long Will Your RBC48 Last? Runtime and Lifespan Explained
Runtime depends entirely on the load connected to your Smart-UPS 750VA. A fully charged RBC48 (7Ah, 24V) powering a 300 to 400W load, such as a workstation or small server, will typically provide 5 to 10 minutes of backup. That is enough time for a graceful shutdown or for mains power to be restored.
Lighter loads produce significantly longer runtimes. Network switches, routers, and similar equipment drawing 50 to 150W can run for 20 to 40 minutes or more on the same battery.
In terms of service life, expect 3 to 5 years under optimal conditions with an ambient operating temperature between 0°C and 40°C. The critical figure to remember: battery life halves for every 10°C above 25°C. A server room running at 35°C will reduce your RBC48's expected lifespan to just 1.5 to 2.5 years.
Practical advice for IT managers: log the installation date on the battery compartment or in your asset register, set a calendar reminder at the 3-year mark, and run a manual self-test at least once a year in addition to the automatic 14-day cycle.
For fleet buyers managing multiple SMT750 units across schools, hospitals, or government offices, stagger your replacement schedules. Replacing all batteries at once creates a predictable window where every unit will need a new battery simultaneously three to five years later.
UK Disposal Regulations for VRLA UPS Batteries
VRLA batteries are classified as hazardous waste under the Waste Batteries and Accumulators Regulations 2009. Businesses cannot dispose of them in general waste. This applies to all organisations, but NHS trusts, local councils, schools, and universities face specific legal obligations to use an approved waste battery collection or recycling scheme.
APC operates an authorised battery recycling programme. If you purchase an OEM RBC48 cartridge, you can return spent units through this scheme. For those using compatible alternatives, third-party recycling services and local Household Waste Recycling Centres (HWRCs) also accept sealed lead-acid batteries. Confirm acceptance with your local centre before making a trip.
Hardwarexpress advises all trade and institutional customers to retain proof of compliant disposal for audit purposes. This is particularly important for public sector organisations subject to environmental compliance reviews.
The RBC48 is RoHS-compliant and safe for international transport, but end-of-life disposal must follow UK regulations regardless of where the battery was manufactured or purchased.
Where to Buy the APC RBC48 in the UK
Hardwarexpress has supplied batteries and power solutions to UK trade and public sector customers since 2004, bringing over 20 years of specialist experience to every order. We stock the Powervolt RBC48 compatible cartridge with high stock levels that enable same-day dispatch, and next-day delivery is available via trusted UK carriers.
Business customers can open a trade account for efficient ordering. NHS trusts, schools, and universities can purchase via purchase order, with dedicated support throughout the process. If you need your battery urgently, click-and-collect is available from our physical store in Coventry.
All pricing is displayed ex-VAT for trade buyers, giving you a transparent cost comparison against OEM alternatives. The Powervolt RBC48 is tested, approved, supplied complete with cables and fuses, and backed by a 1-year warranty.
Order your RBC48 compatible replacement battery today and restore your APC Smart-UPS 750VA to full specification, without the cost of a new unit.
