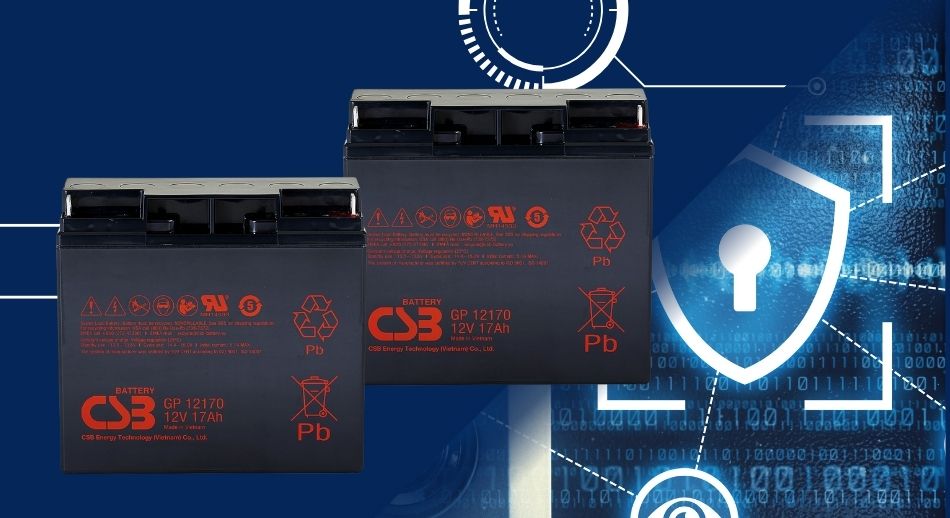

What Is the CSB GP12170 Battery?
The CSB GP12170 is a 12V, 17Ah Valve Regulated Lead Acid (VRLA) battery built on Absorbent Glass Mat (AGM) technology. AGM construction means the electrolyte is held within a fibreglass mat separator rather than sitting as free liquid. The result is a maintenance-free, leak-proof battery with up to 99% gas recombination efficiency.
CSB Battery, headquartered in Taiwan with European operations through CSB Battery Europe BV, is one of the world's leading sealed lead acid manufacturers. The GP12170 is produced in Vietnam and widely available across the UK market.
This battery is a proven standby workhorse, trusted across UPS systems, fire alarm panels, emergency lighting, and mobility equipment. It is designed and tested to IEC 61056-1/2:2012 standards and backed by ISO9001, ISO14001, and OHSMS 18001 certifications. The GP12170 also carries UL recognition under UL 1989 (file MH14533) and complies with IATA/ICAO Special Provision A67, classifying it as non-hazardous for transport by air, ground, and water.
CSB GP12170 Full Specifications
Core specifications to review before ordering:
- Nominal voltage: 12V
- Rated capacity: 17Ah
- Internal resistance: approximately 14 milliohms
- Weight: approximately 5.5kg
- Dimensions: 181mm (L) x 76.2mm (W) x 167mm (H)
- Standby service life: up to 5 years at 25°C; EUROBAT classification 3–5 years standard commercial at 20°C
- Cycle service: more than 260 cycles at 100% depth of discharge
- Float charging voltage: 13.5–13.8 VDC per unit at 25°C
- Equalization charging voltage: 14.4–15.0 VDC per unit at 25°C
- Operating temperature: -15°C to 50°C (discharge); -15°C to 40°C (charge and storage)
- Self-discharge: less than 10% after 90 days; can be stored up to 6 months at 25°C before recharging is required
Every GP12170 unit is tested using CSB's patented computer charge/discharge testing system, providing a consistent quality standard across production batches.
The UK retail price for the CSB GP12170 is approximately £48.04 ex-VAT (£57.65 inc. VAT). Pricing may vary depending on terminal variant and order volume.
Terminal Variants Explained: B1, B1B, B3-L, and F3
The GP12170 is available in four terminal configurations: B1 (NB), B1B, B3-L (M5 nut and bolt), and F3 (nut and bolt). Selecting the wrong terminal type is one of the most common ordering mistakes, and it can prevent installation entirely or damage connectors.
Faston or blade-style terminals (B1, B1B) are typically found in alarm panels and smaller UPS units. Nut-and-bolt terminals (B3-L, F3) are more common in larger UPS cabinets and industrial equipment where a secure, bolted connection is required for higher current draw.
Before placing your order, check the label on your existing battery or consult your equipment manual to confirm the terminal type. For large or mixed orders, the hardwarexpress team can help identify the correct variants. We stock multiple GP12170 terminal options and can advise on compatibility for bulk procurement.
Key Applications: Where the CSB GP12170 Is Used
The GP12170 serves a broad range of standby and backup power applications:
- UPS (Uninterruptible Power Supply) systems
- Emergency lighting
- Fire detection and security alarm panels
- Medical equipment
- Water pumps
- Telecommunications infrastructure
UPS systems represent the single largest use case. The GP12170 is compatible with the APC UPS RBC7 replacement battery cartridge, fitting models including the SMT1500, SUA1000XLI, SU1400, and SUA1500 series. If your APC unit is displaying a battery replacement warning, the GP12170 is very likely the battery you need.
For UK fire safety compliance, the GP12170's certifications make it a strong choice. BS 5839 (fire detection and alarm systems) and BS 5266 (emergency lighting) both require reliable, certified batteries. In the post-Grenfell regulatory environment, stricter enforcement of fire safety standards means procurement teams in commercial buildings are paying closer attention to battery quality and certification status.
The shift to remote and hybrid working has also increased reliance on home and SME UPS systems, driving aftermarket demand for replacement batteries like the GP12170. Beyond traditional standby roles, the battery is finding growing use in solar backup and renewable energy storage setups.
The stationary VRLA segment, covering UPS, telecom, and backup power, is projected to account for 46.5% of total VRLA market revenue in 2025. That figure reflects how central batteries like the GP12170 are to critical infrastructure.
Multi-Orientation Mounting: Why It Matters
The GP12170 can be mounted in any orientation: upright, on its side, or horizontally. Performance and safety are unaffected regardless of position. This is a direct benefit of AGM technology, where the electrolyte is fully absorbed into the glass mat separator, leaving no free liquid to spill.
In practice, this flexibility is essential. Tight UPS enclosures, non-standard rack configurations, and compact alarm panels often require batteries to sit in positions that would be impossible with flooded lead acid alternatives. If your installation space is constrained, the GP12170 will fit without compromise.
When to Replace Your CSB GP12170: Signs of Battery Failure
The GP12170 offers up to 5 years of standby service life at 25°C. In real-world conditions, most UPS and alarm system batteries should be replaced every 3 to 5 years. Waiting until a battery fails completely can leave your equipment unprotected at the worst possible moment.
Watch for these common signs of a failing battery:
- UPS fault codes or audible alarms (APC models display specific battery replacement warnings)
- Reduced backup runtime during mains outages
- Swollen or deformed battery casing
- Voltage drop below 12V under load
- Failure to hold charge after a full charge cycle
A quick health check is straightforward. Use a multimeter to measure the battery's resting voltage and compare it against the float voltage specification of 13.5–13.8V. A reading significantly below this range after a full charge indicates the battery is nearing end of life.
For NHS facilities, data centres, and commercial buildings with fire alarm systems, failing to replace batteries on schedule creates a genuine compliance risk. These are not environments where ageing batteries can be left unchecked.
It is also worth noting that rising antimony prices, which climbed from around £8,800 to approximately £41,200 per tonne during 2025 due to Chinese export restrictions, are pushing up the cost of cheap unbranded VRLA batteries. Genuine CSB batteries offer better long-term value because their consistent quality and longer service life reduce the frequency and cost of replacements.
Storage and Shelf-Life Best Practices
The GP12170 can be stored for up to 6 months at 25°C before it requires a recharge. Self-discharge sits below 10% after 90 days, which is a strong figure for a sealed lead acid battery.
If you are a trade buyer or facilities manager holding stock, label each battery with the date it entered storage. Any battery stored beyond 3 months should be recharged before deployment. Store batteries in a cool, dry environment within the -15°C to 40°C range.
Deploying a deeply discharged battery without recharging it first can permanently reduce its capacity. This is an avoidable loss. hardwarexpress supports bulk and pallet orders for facilities management teams maintaining multiple UPS or alarm systems across sites, so you can schedule deliveries to match your replacement cycles and minimise storage time.
CSB GP12170 vs. CSB EVX12170: Which Should You Choose?
The EVX12170 is CSB's extended-life variant of the GP12170. Where the GP12170 is rated for 3–5 years of standby service, the EVX12170 is designed for 10–12 years.
For standard commercial applications where a 3–5 year replacement cycle is acceptable and upfront cost per unit is a priority, the GP12170 is the right choice. It covers the vast majority of UPS, alarm, and emergency lighting installations.
The EVX12170 makes more sense in mission-critical or hard-to-access installations. If replacing batteries means shutting down equipment or hiring specialist access, the longer service life of the EVX12170 reduces maintenance burden and total cost of ownership over a decade.
When comparing the two, consider the full lifecycle cost rather than just the unit price. If you are unsure which variant suits your application, contact the hardwarexpress team for guidance.
Why Buy the CSB GP12170 from hardwarexpress?
hardwarexpress has been trading since 2004, supplying batteries and hardware to UK businesses, NHS trusts, schools, universities, government organisations, and individual buyers for over 20 years. That track record matters when you are sourcing batteries for critical infrastructure.
We maintain high stock levels across the CSB range, including multiple GP12170 terminal variants, enabling same-day dispatch on orders placed before our cut-off time. Delivery is next-day via reputable carriers.
For local customers, our physical store in Coventry offers click-and-collect. Trade buyers benefit from dedicated trade accounts and our large order enquiry service, designed for procurement teams, facilities managers, and contractors managing multi-site battery replacements.
The European AGM VRLA battery market was valued at approximately £2.96 billion in 2024, reflecting the scale of demand for these products. Sourcing from an established, specialist supplier ensures you receive genuine CSB product with proper certification and support.
Ready to order? Browse the CSB GP12170 on our website, contact our trade team for volume pricing, or visit us at our Coventry store.
Final Thoughts
The CSB GP12170 is a proven, certified, and versatile 12V 17Ah AGM battery suited to a wide range of standby and cycle applications. Choosing the correct terminal variant, understanding the 3–5 year replacement cycle, and sourcing from a reputable UK supplier are the three factors that separate a smooth installation from a costly mistake.
If your UPS or alarm panel battery is approaching the 5-year mark, now is the time to check it. hardwarexpress has supplied batteries to UK businesses and critical infrastructure organisations for over 20 years and is here to help you find the right replacement.
