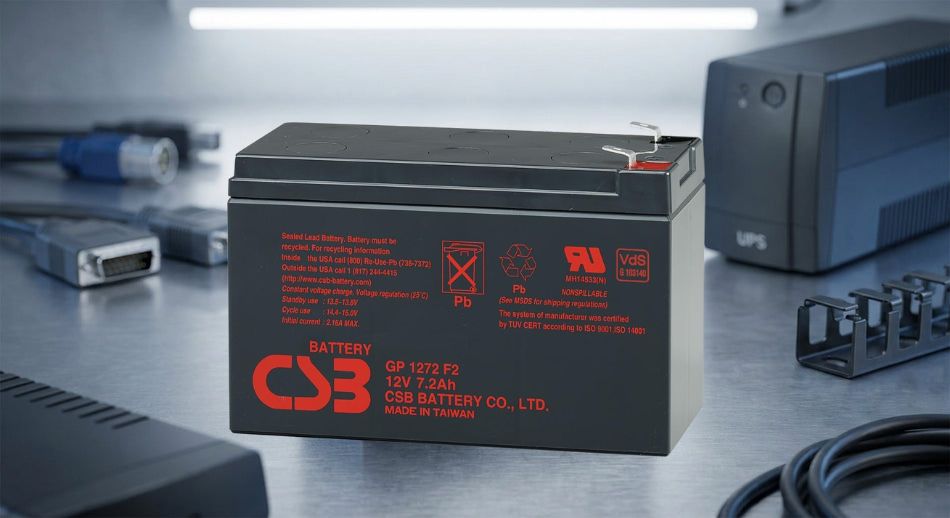

What Is the CSB GP1272F2?
Your alarm panel, UPS, or emergency light is only as reliable as the battery inside it. The CSB GP1272F2 is a 12V 7.2Ah Valve Regulated Lead Acid (VRLA) AGM battery manufactured by CSB Battery Co., Ltd., a company whose products are used in over 52 countries across telecommunications, UPS, emergency lighting, and security sectors.
The GP1272F2 belongs to CSB's GP (General Purpose) series, engineered for both standby (float) and cyclic applications. It is one of the most widely specified standby batteries in the UK market, trusted by alarm installers, facilities managers, and UPS engineers alike. For a compact, dependable 12V 7.2Ah VRLA battery for critical backup power, this is the unit most professionals reach for.
GP1272F2 Full Technical Specifications
The GP1272F2 delivers 12V nominal voltage with a capacity of 7.2Ah at the 20-hour rate. It weighs approximately 2.4kg and is housed in a flame-retardant ABS plastic case rated to UL94-V0, an important safety certification for enclosed environments such as server rooms and alarm panels.
Physical dimensions are 151mm (L) x 65mm (W) x 94mm (H), a standard footprint that fits the vast majority of 12V standby battery enclosures.
One specification that often confuses buyers is the dual rating. You will see this battery listed as both "12V 7.2Ah" and "12V 28W." These are not two separate products. The 7.2Ah figure is the capacity measured over a 20-hour discharge. The 28W figure is the watt-per-cell output during a 15-minute high-rate discharge at 1.67V per cell and 25°C. For very high-drain scenarios, the 5-minute discharge rate is 56.5W per cell.
Maximum charge current is 2.80A. Self-discharge is low: less than 10% capacity loss after 90 days at 25°C, meaning the battery holds its charge well during storage.
For procurement and import teams, the GP1272F2 is manufactured in Vietnam (country of origin: VN) and carries UK customs HS code 85072020.
Understanding the F2 Terminal: Why It Matters for Replacement Compatibility
The "F2" in GP1272F2 refers to the terminal type. An F2 terminal is a Faston quick-connect tab measuring 0.250 inches (6.35mm) wide. This is the larger of the two common Faston sizes used on sealed lead acid batteries.
The alternative is the F1 terminal, which measures 0.187 inches (4.75mm). While the difference sounds small, an F1 connector will not grip an F2 tab securely, and vice versa. A loose connection risks poor electrical contact, intermittent faults, or outright system failure in a critical application such as fire alarm backup.
Faston terminals require no soldering. You simply push the spade connector onto the tab, making field replacement fast and straightforward. Always confirm the terminal size when ordering a replacement battery, especially when cross-referencing from another brand. Voltage and capacity can match perfectly while the terminal type is wrong.
GP1272F2 Cross-Reference: Compatible Replacements and Device Applications
The GP1272F2 is a direct drop-in replacement for several widely used 12V 7.2Ah batteries, provided dimensions and terminal type match. Key cross-reference part numbers include:
- Yuasa NP7-12L
- MK ES7-12 T2
- B&B BP7-12, BP7.2-12
- Exide EP7-12
- Diamec DM12-7.2
If you are replacing any of these batteries, the GP1272 F2 with F2 terminals will fit directly into the same enclosure and connector setup.
Common device categories powered by the GP1272 F2 include UPS systems, intruder alarm panels, fire alarm control panels, emergency lighting units, access control systems, and certain medical equipment. Alarm installers, facilities managers, and UPS engineers are the primary trade buyers of this battery in the UK.
Before ordering, verify three things: voltage, physical dimensions, and terminal type. Matching only voltage and Ah rating is not enough to guarantee compatibility.
Service Life, Storage, and Temperature: What Trade Buyers Need to Know
The GP1272F2 is rated for up to 5 years of service life in float (standby) mode at 25°C. In cyclic applications, it delivers more than 260 cycles at 100% depth of discharge.
Its low self-discharge rate (less than 10% over 90 days at 25°C) allows storage for up to 6 months before recharging is required. This is a practical advantage for trade buyers who hold stock on shelves. We recommend recharging any battery that has been in storage for more than 3 months before putting it into service.
Temperature has a significant impact on VRLA battery performance. In cold environments, capacity drops noticeably. This is a real concern for UK installations in unheated premises, outdoor cabinets, or plant rooms. Batteries stored or operated below 10°C should be capacity-tested before installation in critical systems such as fire alarms or emergency lighting.
To verify battery freshness, check the CSB manufacturing date code printed on the label. CSB uses a YYMMDD format, so a code reading "260115" means the battery was manufactured on 15 January 2026. Engineers replacing batteries in life-safety systems should always check this date code. A fresh battery gives you the full rated service life from day one.
Transport Safety and AGM Technology Advantages
The GP1272F2 uses Absorbent Glass Mat (AGM) technology. The electrolyte is fully absorbed into glass mat separators, enabling gas recombination of up to 99%. This design makes the battery completely spill-proof and safe to operate in any orientation, which matters for installations where mounting position varies.
From a transport perspective, the GP1272F2 is classified as Non-Spillable and Non-Hazardous under the Department of Transportation (DOT), International Air Transport Association (IATA), and International Civil Aviation Organization (ICAO) regulations. It can be shipped by air without special hazardous goods documentation.
This is a genuinely useful feature for NHS trusts, government organisations, and field-service teams who need to courier batteries to remote sites or overseas deployments. Most competitor product pages do not highlight this classification, but for logistics teams managing battery shipments, it removes significant paperwork and cost.
UK Battery Disposal and Recycling Obligations for the GP1272 F2
Under the Waste Batteries and Accumulators Regulations 2009, VRLA batteries like the GP1272F2 are classified as industrial batteries. They cannot be sent to landfill. By law, they must be returned to the producer or an Approved Battery Treatment Operator (ABTO) for recycling.
UK retailers selling more than 32kg of batteries per year are required to provide a free take-back point for waste batteries and arrange transport to an ABTO. This obligation is enforced by the Office for Product Safety and Standards (OPSS).
Labelling requirements are also mandatory. Every battery placed on the UK market must display the crossed-out wheeled bin symbol, covering at least 3% of the battery's largest face. Lead-containing batteries like the GP1272F2 must additionally display the chemical symbol "Pb."
Trade buyers, particularly alarm installers and facilities managers replacing batteries in bulk, should have a compliant waste battery disposal process in place. At hardwarexpress, we support customers with battery take-back and disposal guidance to help you meet your legal obligations.
Buying the GP1272F2 in the UK: Pricing, Trade Accounts, and Stock Availability
The CSB GP1272F2 retails at approximately £20.54 ex. VAT (£24.65 inc. VAT) per unit. Bulk and trade buyers, including alarm installers, facilities managers, and UPS engineers, should enquire about volume pricing and dedicated trade accounts for better rates on larger orders.
To verify you are receiving genuine CSB stock, check for CSB branding on the battery casing, verify the manufacturing date code on the label, and buy from authorised UK distributors. Be cautious with unverified compatible substitutes where terminal size, dimensions, or actual capacity may differ from the GP1272F2 specification.
At hardwarexpress, we maintain high stock levels enabling same-day dispatch, with next-day delivery via reputable carriers. A click-and-collect service is also available from our Coventry store. We have been trading since 2004, supplying NHS trusts, schools, universities, and government organisations alongside trade and retail customers. Our dedicated trade accounts and large-order enquiry service are designed for professionals who need reliable supply at competitive prices.
Is the CSB GP1272F2 the Right Battery for Your Application?
The GP1272F2 offers proven VRLA AGM technology, wide cross-reference compatibility, safe transport classification, and up to 5 years of standby service life. It is a well-established choice for UPS backup, alarm panels, emergency lighting, and access control systems across the UK.
Before ordering, always verify the terminal type (F2), physical dimensions, and capacity rating to avoid costly installation errors. When disposing of old batteries, remember your recycling obligations under UK law.
Trade buyers and businesses looking for volume pricing, trade accounts, or technical guidance are welcome to contact our team. View the GP1272F2 product listing on our website, or get in touch for a large-order enquiry.
