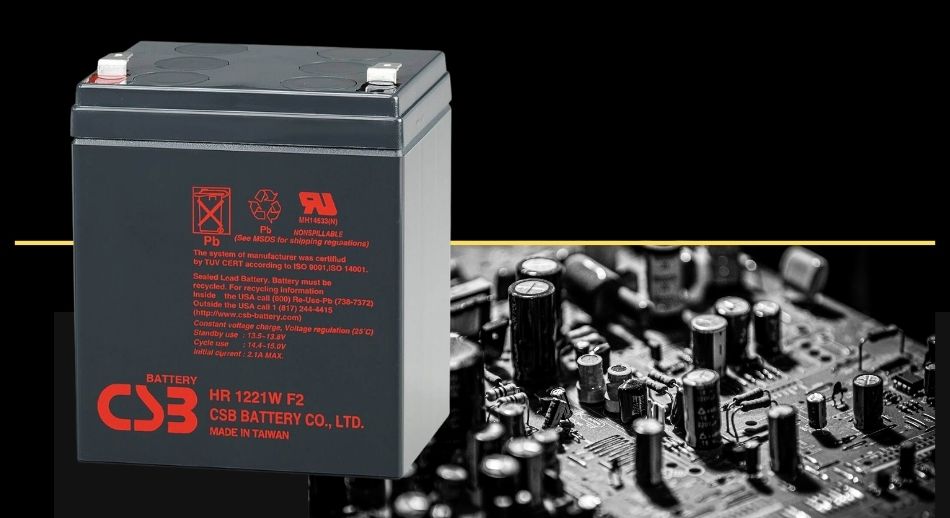

What Is the CSB HR1221WF2 Battery?
The CSB HR1221WF2 is a 12V, 5.1Ah valve-regulated lead acid (VRLA) AGM battery designed for high-rate discharge applications. The "HR" in its name stands for High Rate, meaning this battery is engineered to deliver rapid bursts of power over short periods, which is exactly what a UPS system demands during a mains failure.
CSB Battery Co., Ltd. has been manufacturing sealed lead acid batteries since 1986. The company produces over 4 million batteries per month and supplies products across more than 100 countries, serving the UPS, telecoms, solar, emergency lighting, and security sectors.
The HR1221WF2 features an F2 terminal (0.250" Faston quick-connect tab), allowing tool-free, solder-free replacement in most UPS and alarm systems. Its design life reaches up to 5 years in standby/float service, with over 260 cycles at 100% depth of discharge in cycle service.
With broad compatibility and proven reliability, the HR1221WF2 is one of the most widely used UPS replacement batteries in the UK, making it a practical, cost-effective choice for businesses, schools, NHS trusts, and government facilities alike.
HR1221WF2 Technical Specifications Explained
Understanding the HR1221WF2's specifications helps you confirm it is the right fit for your application. Key figures are listed below:
- Nominal voltage: 12V
- Capacity: 5.1Ah at 20-hour rate
- High-rate rating: 21W per cell at 15-minute rate to 1.67V/cell at 25°C
- Dimensions: 90mm (L) x 70mm (W) x 106.1mm (H)
- Weight: approximately 1.8 to 2.0 kg
- Internal resistance: approximately 25 milliohms
- Maximum discharge current: 60A continuous / 90A for 5 seconds
- Operating temperature: -15°C to 50°C (discharge), -15°C to 40°C (charging)
The distinction between the Ah rating and the 21W/cell high-rate rating is important. The standard 5.1Ah figure describes capacity over a slow, 20-hour discharge. For UPS applications, the 15-minute high-rate figure is far more relevant because it reflects how much power the battery can deliver during a short outage. This is the number that determines your actual UPS runtime.
The AGM (Absorbent Glass Mat) construction enables up to 99% gas recombination inside the sealed casing, making the battery completely maintenance-free and spill-proof. It can be mounted in any orientation without risk of acid leakage.
With an operating range from -15°C to 50°C for discharge, the HR1221WF2 performs reliably in server rooms, plant rooms, and other controlled indoor environments. CSB also claims 20% higher energy density compared to competitor VRLA batteries in the same class, contributing to its compact footprint relative to its output.
Compatible UPS Models and Cross-Reference Guide
The HR1221WF2 is confirmed compatible with a wide range of popular UPS systems. If you are replacing batteries in any of the following, the HR1221WF2 is a direct drop-in fit:
- APC RBC30
- APC RBC44
- APC Smart-UPS RT series: SURT1000RMXLT, SURT3000RMXLT, SURT5000RMXLT, SURT6000RMXLT, SURT8000RMXLT
- Liebert iTON 400
Many larger UPS installations use multiple HR1221WF2 batteries wired in a string. APC SURT series units, for example, may require 8, 10, or even 16 batteries. When replacing batteries in a multi-unit string, all batteries must be replaced at the same time. Mixing old and new batteries within a string causes uneven charging and discharge, which degrades the performance and lifespan of every battery in the set.
If you are searching by a competitor part number, the HR1221WF2 is a direct equivalent for the following batteries:
- Yuasa NPX-25 / NPX-25FR
- Enersys NP4-12 / NPH5-12
- MK ES4-12
- BB Battery HR5.8-12
- Ritar RT1250F2
- Panasonic LCR12V4BP
At hardwarexpress, we stock the full CSB range and can advise on multi-unit orders for large UPS installations. Our trade account and large order enquiry service is available for IT managers, facilities teams, and procurement officers who need bulk quantities shipped together.
How to Replace the HR1221WF2 in a UPS System
Replacing the HR1221WF2 is straightforward, but following the correct procedure protects both you and your equipment. Here is a step-by-step guide:
- Power down and disconnect. Shut down the UPS through its normal shutdown procedure. Disconnect it from the mains supply and allow any residual charge to dissipate before opening the battery compartment. This step is essential for safety.
- Locate the battery compartment. Identify the battery access panel on your specific UPS model. Most APC units have a front-facing or slide-out battery tray. Consult your UPS manual if you are unsure.
- Disconnect the old battery. Carefully disconnect the F2 Faston connectors from the battery terminals. Before removing anything, note the polarity and connector orientation. Taking a quick photo with your phone is a simple way to record this.
- Remove the old battery. Lift the old battery out carefully. At approximately 1.8 to 2.0 kg it is manageable, but avoid allowing metal tools or jewellery to bridge the terminals, as this can cause a short circuit.
- Insert the new HR1221WF2. Place the new battery into the compartment, ensuring correct polarity alignment. Press the F2 connectors firmly onto the terminals until they click securely into place.
- Reassemble and test. Refit the access panel, reconnect the UPS to the mains, and allow the battery to complete a full charge cycle before running a self-test.
For multi-battery string replacements, remember: never mix old and new batteries. Replacing all units simultaneously ensures consistent performance and maximises the lifespan of every battery in the string.
If you are replacing batteries in a large UPS installation (such as a 16-battery APC SURT string), hardwarexpress offers multi-pack pricing and trade account support to make bulk purchasing straightforward and cost-effective.
When to Replace Your HR1221WF2: Signs of Battery Degradation
The HR1221WF2 has a design life of up to 5 years in standby service. For critical applications such as NHS facilities, server rooms, or fire alarm systems, we recommend proactive replacement at the 3 to 4 year mark rather than waiting for failure.
Watch for these warning signs that indicate your battery is approaching end of life:
- UPS self-test failures or repeated fault alerts
- Noticeably reduced runtime under load
- Swollen, bulging, or leaking battery casing
- Elevated internal resistance readings above the baseline for your unit
For larger installations, IoT-enabled Battery Management Systems (BMS) can reduce unexpected UPS battery failures by up to 30% and extend maintenance intervals by around 20%. If you manage multiple UPS units across a site, BMS monitoring is well worth the investment.
Battery replacement costs typically account for 35 to 50% of total UPS lifecycle expenses. Recording installation dates and setting calendar reminders for replacement is a simple but effective way to control costs and avoid unplanned downtime. This is particularly relevant for facilities managers and IT teams responsible for multiple units.
UK Disposal Regulations for HR1221WF2 Batteries
Spent HR1221WF2 batteries are classified as hazardous waste in the UK under the Waste Batteries and Accumulators Regulations 2009. They must not be placed in general waste under any circumstances.
Businesses are required to use an approved waste treatment operator for collection and recycling. A hazardous waste consignment note must be completed for each collection, and these records must be retained for a minimum of 3 years.
One significant change is approaching: the UK government's Digital Waste Tracking system will require digital records for all hazardous waste battery movements. Receiving sites must comply from October 2026. If your organisation has not yet prepared for this transition, now is the time to review your processes.
We advise B2B buyers and facilities managers to establish a relationship with an approved battery recycler before the next replacement cycle. Purchasing replacement batteries in advance ensures you can manage the swap and disposal within compliance timelines, avoiding operational disruption. The team at hardwarexpress can advise on responsible disposal routes alongside your battery order.
Why Buy the HR1221WF2 from hardwarexpress?
We have been trading since 2004, building a long-established reputation as a trusted UK battery and hardware supplier. Here is what sets us apart for HR1221WF2 purchases:
- High stock levels: We hold the HR1221WF2 and the full CSB range in stock, enabling same-day dispatch on orders placed before our daily cut-off.
- Next-day delivery: We ship via reputable UK carriers, which is critical when your business is facing UPS downtime.
- Trade accounts and bulk orders: Dedicated trade accounts and a large order enquiry service are available for IT managers, facilities teams, NHS trusts, schools, and government procurement officers buying in packs of 8, 10, 16 or more.
- Click and collect: Our physical store in Coventry offers click-and-collect for local customers who need immediate stock.
- Expert advice: Our knowledgeable team can help with compatibility queries, multi-battery string configurations, and cross-reference questions.
Final Verdict: Is the HR1221WF2 the Right Battery for Your UPS?
The CSB HR1221WF2 delivers proven VRLA AGM technology, broad UPS compatibility, tool-free F2 terminal installation, a 5-year design life, and a competitive price point compared to lithium-ion alternatives.
The broader market is gradually shifting toward lithium-ion for new UPS deployments. For replacing batteries in existing VRLA-based UPS systems, however, the HR1221WF2 remains the cost-effective, immediately available, and fully compliant choice. It requires no full system overhaul, and VRLA technology still accounts for 58% of the global UPS battery market.
For the vast majority of UK businesses, schools, NHS trusts, and government facilities running existing VRLA UPS systems, the HR1221WF2 is the smart, practical, and budget-conscious replacement choice in 2026.
