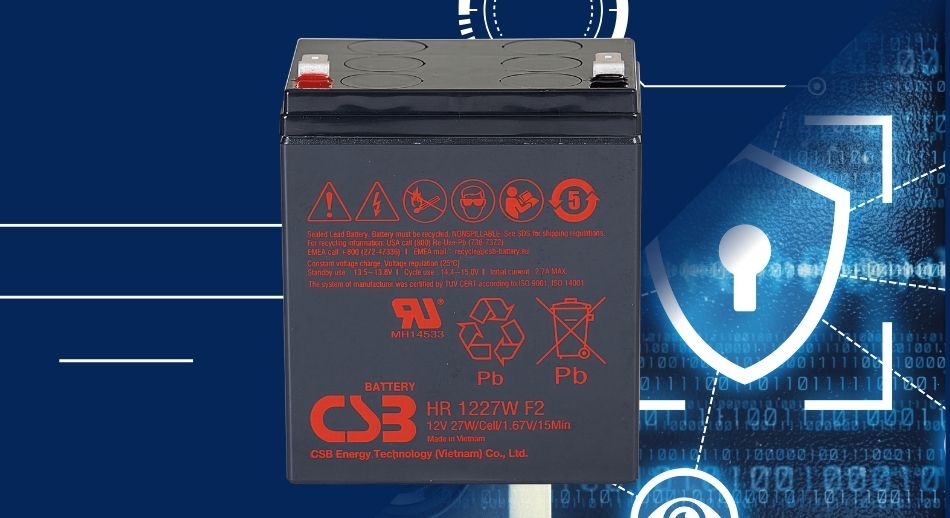

What Is the CSB HR1227WF2 Battery?
The CSB HR1227WF2 is a 12V, 6.5Ah high-rate sealed AGM (Absorbent Glass Mat) VRLA battery rated at 27 watts per cell at the 15-minute discharge rate to 1.67V per cell at 25°C. "High-rate" means this battery is engineered for short, intense discharge events — the kind you see during a mains power failure when a UPS must deliver maximum power quickly — rather than prolonged, low-draw applications.
CSB Energy Technology has been producing VRLA batteries since 1986, manufacturing over 4 million units per month and supplying to more than 100 countries. The HR1227WF2 sits within the broader CSB HR series, which spans 18W to 120W per cell at the 15-minute rate, giving specifiers a range of options for different load requirements.
This guide is written for trade professionals, installers, and B2B buyers who need a complete reference covering specifications, applications, compliance, and purchasing.
Key Specifications at a Glance
The core technical parameters for the CSB HR1227WF2 are as follows:
- Voltage: 12V (6 cells per unit)
- Capacity: 6.5Ah
- High-rate rating: 27W/cell at 15-minute rate to 1.67V/cell at 25°C
- Dimensions: 90mm (L) × 70mm (W) × 102mm (H)
- Weight: approximately 1.97kg
- Terminal type: F2 Faston tab (0.250 inch), the standard connector for UPS and alarm system compatibility
- Maximum discharge current: 100A continuous / 130A for 5 seconds
- Float charge voltage: 13.5–13.8 VDC per unit at 25°C
- Operating temperature (discharge): -15°C to 50°C
- Operating temperature (charge and storage): -15°C to 40°C
The float charge voltage of 13.5–13.8 VDC is critical for correct charger configuration. Setting your charger outside this range will shorten the battery's service life significantly.
CSB rates the HR1227WF2 as delivering 25% greater capacity than a standard battery of equivalent size. The HR series also offers approximately 20% higher energy density compared to comparable competitor models, making it a strong performer in space-constrained installations.
The housing is ABS plastic as standard. An optional UL94-V0 flame-retardant case variant is available, designated the HR1227WF2 FR.
HR1227WF2 vs. HR1227WF2 FR: Understanding the Flame-Retardant Variant
The standard HR1227WF2 uses a conventional ABS plastic case. The FR variant uses a UL94-V0 rated flame-retardant ABS case. Both variants share identical electrical specifications; the only difference is the housing material.
The FR variant has become increasingly relevant in the UK. Building regulations and fire safety standards have tightened significantly since the Grenfell Tower tragedy, and flame-retardant materials are now more frequently specified in commercial and public sector projects.
For installations governed by BS 5839 (fire detection and alarm systems) or BS EN 50171 (central power supply systems for emergency lighting), the FR variant may be required or strongly preferred. Specifiers should check their system documentation and site fire safety assessment before ordering.
If you are unsure which variant your project requires, hardwarexpress can advise. This is particularly useful for trade and institutional buyers working across multiple sites with varying fire safety requirements.
Where the CSB HR1227WF2 Is Used: Key Applications
UPS systems are the primary application. The HR1227WF2's compact form factor and high-rate discharge capability make it well suited to desktop and rack-mount UPS units in offices, data centres, and server rooms. With UK data centre floor space projected to grow 6–8% annually through 2030, UPS battery replacement cycles of every 5–7 years represent a substantial ongoing requirement.
Emergency lighting systems rely on standby batteries that meet specific power delivery requirements. The HR1227WF2 is suitable for both maintained and non-maintained emergency lighting configurations.
Security and alarm systems are another core use case. The battery is widely installed in intruder alarm panels and home alarm controllers. Its ability to operate in multiple orientations is a practical advantage for installers working in confined panel enclosures.
Medical equipment benefits from the sealed, maintenance-free construction, which meets the hygiene and reliability standards expected in clinical environments.
Telecommunications infrastructure relies heavily on AGM technology. AGM batteries hold approximately 70% of the UK telecom backup battery market, and the HR1227WF2's compact high-rate output suits 5G and broadband infrastructure cabinets.
For NHS, government, and public sector procurement, the battery's UL, IATA, and transport compliance credentials support tender requirements. The UK AGM battery market is valued at approximately £380–£420 million in 2026, with stationary applications (UPS, data centres, telecom) accounting for 38–42% of that value.
AGM Technology: Why It Matters for Critical Applications
AGM stands for Absorbent Glass Mat. In this construction, the electrolyte is absorbed into glass mat separators rather than sitting as free liquid. This eliminates the risk of spills and allows the battery to be fully sealed.
Gas recombination efficiency reaches up to 99%, meaning the battery is genuinely maintenance-free. There is no need to top up water or vent gases under normal operating conditions.
CSB's wafer-thin plate technology, manufactured using 99.99% pure lead ingot, delivers higher energy density and improved high-rate performance compared to standard lead-acid designs. The result is more power from a smaller, lighter package.
A key practical benefit is multi-orientation installation. The HR1227WF2 can be mounted upright, on its side, or inverted without affecting performance or service life. This matters for alarm and UPS installers who frequently work in tight spaces where mounting options are limited.
Compared to flooded lead-acid batteries, AGM is the correct choice for sealed enclosures and critical standby applications where maintenance access is restricted or impractical.
Design Life, Cycle Life, and Replacement Guidance
The HR1227WF2 has a standby (float) design life of 3–5 years at 25°C. In cycle service, it supports more than 260 cycles at 100% depth of discharge.
Understanding the difference matters. Standby service means the battery sits on float charge, ready to deliver power during a mains failure. Cycle service involves regular charge and discharge events, such as in solar or portable power applications. Most UPS and alarm installations fall under standby service.
While UPS battery replacement cycles in practice often stretch to 5–7 years, the HR1227WF2's 3–5 year design life means proactive replacement before failure is the recommended approach. Waiting for a battery to fail during a power event defeats the purpose of having backup power.
Signs that a battery needs replacing include: swollen casing, failure to hold charge, noticeably reduced runtime, and charger fault indicators on your UPS or alarm panel.
For critical systems in NHS facilities, data centres, and security installations, keeping a spare unit on-site is sensible practice. hardwarexpress maintains high stock levels with same-day dispatch capability, so urgent replacements can reach you the next working day.
Installation, Charging, and Storage Best Practices
Float charge voltage must be set to 13.5–13.8 VDC per unit at 25°C. Incorrect charger voltage is the single most common cause of premature battery failure. If your charger is set too high, you will overcharge the battery and accelerate plate degradation. Too low, and the battery will sulphate over time.
For cycle-use applications, the charge voltage should be set to 14.4–14.7 VDC per unit at 25°C.
The maximum initial charge current should not exceed 1.95A. Before installing, verify that your charger's current limiting is configured correctly.
For storage, keep the battery in a cool, dry location between -15°C and 40°C. If stored unused, recharge every 6 months to prevent sulphation, which permanently reduces capacity.
The battery can be installed in any orientation thanks to its sealed VRLA-AGM construction. Ensure terminals are secure and connections are clean and free of corrosion. Never short-circuit the terminals, overcharge the battery, or expose it to temperatures above 50°C during discharge.
For full charge and installation parameters, hardwarexpress can supply the official CSB HR1227WF2 datasheet on request.
Compliance, Certifications, and Transport
The CSB HR1227WF2 carries the following certifications and compliance credentials:
- ISO 9001 (quality management) and ISO 14001 (environmental management) certified manufacturing
- UL recognised under UL 1989 (file number MH14533), required for many internationally specified UPS systems
- Air transport: compliant with IATA/ICAO Special Provision A67, classified as non-hazardous for air freight
- Water transport: classified as non-hazardous
- Surface transport: recognised by DOT as "Dry charge" under 49 CFR 171-189
These credentials are particularly relevant for NHS, government, and education sector buyers who must source certified products through formal procurement frameworks. The FR variant's UL94-V0 housing provides additional compliance assurance for fire-sensitive installations, supporting tenders where flame-retardant materials are specified.
Buying the CSB HR1227WF2 from hardwarexpress
hardwarexpress has been supplying batteries and hardware to trade and public customers since 2004. We stock the CSB HR1227WF2 with high stock levels that support same-day dispatch and next-day delivery via reputable carriers. When a UPS goes down or an alarm panel flags a battery fault, speed of replacement matters.
Trade account holders benefit from dedicated account management and volume pricing. This is particularly relevant for security installers, facilities managers, and IT procurement teams who order regularly.
For larger requirements, our bulk purchase enquiry service is available to NHS trusts, schools, universities, and government organisations. We handle large orders routinely and can support scheduled deliveries for multi-site rollouts.
Local trade customers can use click-and-collect from our Coventry store for immediate collection.
Contact us for datasheet requests, advice on choosing between the standard and FR variants, or bulk pricing enquiries.
Is the CSB HR1227WF2 the Right Battery for Your Application?
The HR1227WF2 delivers compact, high-rate AGM performance in a maintenance-free, sealed package that can be mounted in any orientation. Its compliance credentials, including ISO 9001, UL 1989, and IATA transport clearance, make it suitable for both commercial and public sector environments.
It is a proven choice for UPS systems, emergency lighting, security alarms, medical equipment, and telecom backup. If your installation requires flame-retardant housing, the FR variant provides the same electrical performance in a UL94-V0 rated case.
hardwarexpress has been a trusted UK battery supplier since 2004, serving trade professionals, NHS trusts, schools, and government buyers. With high stock levels, same-day dispatch, trade accounts, and expert product advice, we are here to support your requirements.
Visit our product page to order, open a trade account for volume pricing, or contact our team for bulk pricing and technical support.
