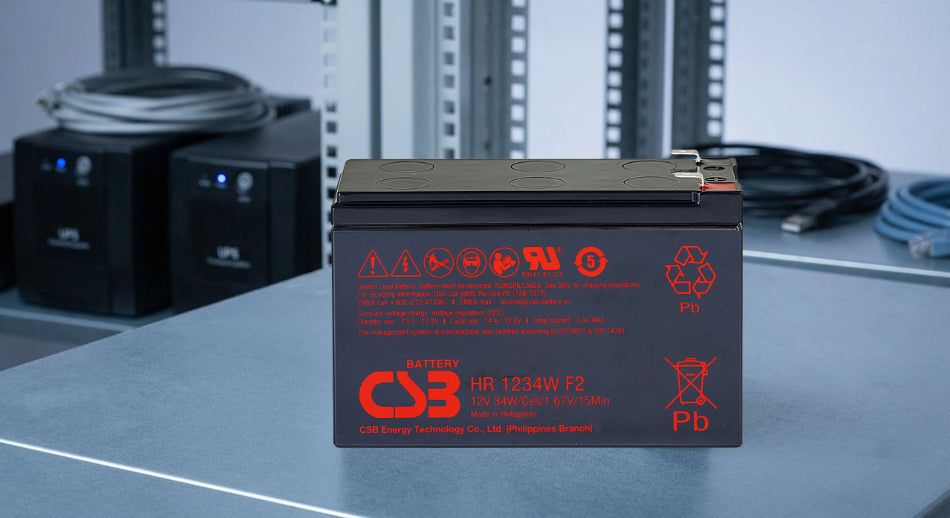

What Is the CSB HR1234WF2 Battery?
The CSB HR1234WF2 is a 12V, 9Ah High Rate valve-regulated lead acid (VRLA) battery rated at 34W per cell. Manufactured by CSB, it uses Absorbent Glass Mat (AGM) technology, which enables gas recombination efficiency of up to 99%. This makes the battery completely maintenance-free and spill-proof.
The "High Rate" designation matters. Unlike a standard 12V 9Ah SLA battery, the HR1234WF2 is specifically engineered for high-power, short-duration discharge applications such as UPS systems and emergency lighting. It features a 6-cell, valve-regulated construction housed in an ABS container rated to UL 94-HB.
CSB manufactures the HR1234WF2 under ISO 9001 and ISO 14001 certification, providing quality and environmental assurance. The battery also carries UL recognition under file numbers MH14533 (UL 924) and MH20845, confirming its suitability for emergency lighting and UPS installations.
Full Technical Specifications
Key specifications for the CSB HR1234WF2:
- Voltage: 12V
- Capacity: 9Ah / 34W per cell at the 15-minute rate to 1.67V per cell at 25°C
- Maximum discharge current: 130A (5 seconds)
- Short circuit current: 349A
- Internal resistance: approximately 19.0 mΩ
- Maximum charge current: 3.4A
- Dimensions: 150.9mm (L) × 64.8mm (W) × 98.6mm (H overall)
- Weight: 2.60 kg
- Terminal type: F2 (Faston Tab 250 / 0.250-inch fast-on)
- Container: ABS (UL 94-HB)
In cycle service, the HR1234WF2 delivers more than 260 cycles at 100% depth of discharge. Standby design life reaches up to 5 years on continuous float charge. The battery can be stored for up to 6 months at 25°C without requiring a recharge.
High-Rate vs Standard SLA: Why the HR1234WF2 Performs Differently
Most product listings describe the HR1234WF2 as a "12V 9Ah battery" and leave it at that. This misses the point entirely. The difference between a high-rate battery and a standard SLA of the same nominal capacity is significant, and it directly affects performance in critical applications.
Standard SLA batteries are typically rated at the 20-hour discharge rate (C20), meaning their stated capacity assumes a slow, steady drain over 20 hours. A high-rate battery like the HR1234WF2 is rated at the 15-minute rate, a fundamentally different performance profile. The CSB HR series delivers up to 20% more high energy output density than standard competitors, outputting up to 204 watts for 15 minutes to 1.67V per cell at 25°C.
During a power cut, a UPS does not draw power slowly over 20 hours. It needs maximum current immediately to keep connected equipment running. A standard 9Ah SLA may share the same voltage and nominal capacity, but it cannot deliver the same burst of energy in a short window.
Specifying a high-rate battery for a high-rate application is a compliance and performance decision, not simply a capacity swap. If your UPS or emergency lighting system was designed for a high-rate battery, fitting a standard SLA will compromise both runtime and reliability when it matters most.
Understanding the F2 Terminal: Why Terminal Type Matters
The HR1234WF2 uses F2 terminals. An F2 terminal is a 6.35mm (0.250-inch) Faston tab, also known as a Tab 250 or fast-on connector. This is the standard terminal size for the vast majority of UPS and alarm system battery connectors sold in the UK.
The smaller alternative is the F1 terminal, which measures 4.75mm (0.187-inch). This is a common source of buyer confusion. Ordering an F1-terminal battery for an F2 harness means the connectors will not fit properly. An adapter would be required, and even then it is not a true direct replacement.
The HR1234WF2 uses F2 terminals throughout, making it a direct plug-in replacement for most 12V 7Ah to 9Ah F2-terminal batteries. No adapters, no modifications.
Practical tip: Before ordering a replacement battery, always verify the terminal type on your existing unit. Check for F1 or F2, not just voltage and Ah rating. Getting the terminal wrong is one of the most common reasons for returns on replacement SLA batteries.
Compatibility: UPS Systems, Alarms, and Other Applications
One of the HR1234WF2's strongest selling points is its broad cross-compatibility. It serves as a direct replacement for most standard 12V 7Ah, 7.2Ah, 7.5Ah, 8Ah, 8.5Ah, and 9Ah batteries with F2 terminals, meaning one SKU covers a wide range of installed equipment.
The HR1234WF2 is confirmed compatible with a long list of APC UPS models, including:
- APC Back-UPS 250B, 300, 350, 400, 500
- APC Back-UPS Pro 280, Pro 350, Pro 420, Pro 500
- APC BackUPS CS350, BR1000, BR1200, BR1500
- APC BX1000, BX1300LCD, BX1500
- APC RS900, RS1000, RS1200, RS1500
- APC SC1000, SUA750
Beyond APC, the battery is also compatible with systems from Belkin, Eaton/Powerware, Emerson/Liebert, Yuasa, Panasonic, Exide, Fiamm, GS Portalac, Kung Long, and Vision. These are all brands commonly found in UK commercial and institutional installations, yet they are often missing from US-focused compatibility lists.
Key application areas include UPS backup systems, emergency lighting (including exit signs), fire and security alarms, water pumping systems, telecommunications equipment, and medical equipment.
For trade buyers: The HR1234WF2's cross-compatibility simplifies stock management considerably. If you manage batteries across multiple sites with mixed equipment, a single part number covers a very wide installed base.
UK Compliance: Emergency Lighting, Fire Alarms, and Regulated Environments
In many UK installations, the HR1234WF2 is a compliance-critical component, not simply a commodity part. BS 5266 (emergency lighting) and BS 5839 (fire alarm systems) mandate regular battery testing and replacement. Failing to maintain these systems can result in enforcement action and, more importantly, puts lives at risk.
NHS facilities, government buildings, schools, and universities all face statutory obligations to maintain emergency lighting and fire alarm systems. This creates recurring, regulation-driven demand for reliable replacement batteries. The HR1234WF2's UL 924 recognition (file MH14533) confirms its suitability for emergency lighting applications.
For environments with stricter fire safety requirements, CSB offers the HR1234WF2-FR. This flame-retardant variant uses a fire-resistant ABS container and is specified for data centres, healthcare facilities, and public buildings where fire safety standards are paramount. The electrical performance is identical to the standard version; only the container material differs.
Advice for facilities managers and compliance officers: Always check your site-specific fire safety requirements before ordering. If your building's fire risk assessment or insurer requires flame-retardant battery enclosures, specify the FR variant.
Storage, Charging, and Maximising Battery Life
The HR1234WF2 can be stored for up to 6 months at 25°C without recharging, which is useful for trade buyers holding stock for planned maintenance cycles. Storing at lower temperatures extends shelf life further, while temperatures above 25°C accelerate self-discharge and reduce overall lifespan.
Always use a VRLA-compatible charger. The maximum charge current for the HR1234WF2 is 3.4A. Overcharging damages AGM batteries and will void the warranty.
Cycle service life exceeds 260 cycles at 100% depth of discharge. Shallower discharge cycles will significantly extend the battery's working life. In standby (float) service, the design life is up to 5 years, the expected lifespan when the battery sits on continuous float charge inside a UPS or alarm panel.
Practical advice: Replace batteries proactively, not reactively. A UPS battery that fails during a power cut defeats the entire purpose of the system. Schedule replacements before the end of the battery's rated design life.
Why Order the HR1234WF2 from hardwarexpress?
hardwarexpress has supplied batteries and hardware to UK businesses, trade professionals, NHS trusts, schools, and government organisations since 2004, giving us over 20 years of specialist experience in this market.
High stock levels enable same-day dispatch, with next-day delivery available via reputable carriers. When a UPS or alarm battery fails unexpectedly, fast turnaround is a necessity, not a convenience.
Trade accounts and a dedicated large order enquiry service are available for facilities managers, electrical contractors, and IT teams replacing batteries across multiple sites. For local customers in the Coventry area, our physical store offers click-and-collect for immediate availability.
We stock the full CSB range alongside other leading battery brands, so you can always find the correct replacement. The VRLA battery market was estimated at approximately £16.3 billion globally in 2025, reflecting how mainstream and well-supported this technology is. The HR1234WF2 sits firmly within the high-volume, price-accessible replacement segment, and we carry the stock to match demand.
Conclusion: The HR1234WF2, a Reliable and Versatile Replacement Battery
The CSB HR1234WF2 combines high-rate AGM performance, broad cross-compatibility across dozens of UPS and alarm models, convenient F2 terminals, and strong compliance credentials. For trade buyers managing diverse installed bases, it is a genuine single-SKU solution covering a wide range of equipment.
Before ordering, verify that your existing battery uses F2 terminals, determine whether the standard or FR (flame-retardant) variant is required for your site, and ensure you have a compatible VRLA charger.
Backed by ISO 9001 quality standards and UL recognition, the HR1234WF2 is a proven, dependable choice for UK businesses and professionals. Contact hardwarexpress for stock availability, trade account enquiries, or same-day dispatch.
