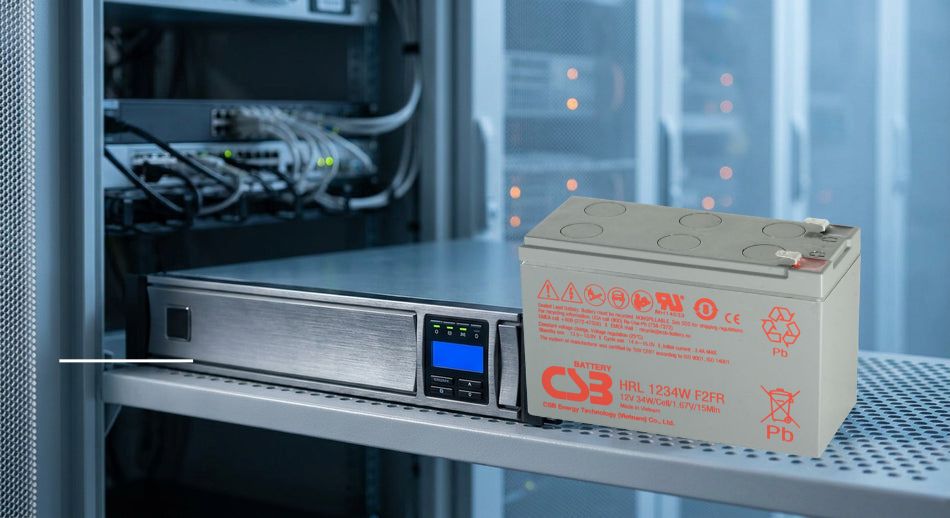

What Is the CSB HRL1234WF2FR Battery?
The HRL1234WF2FR is a 12V 9Ah (34W per cell) sealed lead acid AGM VRLA battery from CSB Energy Technology's High Rate Long Life series. It sits above CSB's standard HR and GP ranges, engineered specifically for high-efficiency, high-rate discharge applications with a longer design life than general-purpose equivalents.
Breaking down the model name tells you exactly what you're getting: HRL = High Rate Long Life, 12 = 12V, 34 = 34W per cell, W = watts, F2 = Faston Tab 250 terminal type, and FR = flame retardant ABS case.
This is a premium standby power solution widely used in UPS systems, fire alarm panels, and emergency lighting across UK commercial and public sector environments. CSB Energy Technology manufactures between 4 and 5 million batteries every month, supplying OEM customers including APC, Eaton, and Socomec across more than 52 countries. That scale and those partnerships speak to the quality behind the HRL series.
Key Technical Specifications
Here are the core specifications for the CSB HRL1234WF2FR:
- Voltage: 12V
- Capacity: 9Ah (20-hour rate)
- High-rate rating: 34 watts per cell
- Dimensions: 151mm (L) x 65mm (W) x 94mm (H)
- Weight: approximately 2.70 kg
- Terminal type: F2 / Faston Tab 250 (0.250"), the standard fast-connect terminal compatible with most UPS and alarm equipment
- Maximum charge current: 3.4A
- Charge temperature range: -15°C to 50°C
- Discharge temperature range: -15°C to 40°C
Design life: Up to 8 to 10 years in float/standby service. Some sources cite 5 to 8 years for this model; we recommend buyers verify the figure against the official CSB datasheet for their specific application, as real-world conditions (ambient temperature, charge regime) significantly affect longevity.
Cycle life: Rated for more than 260 cycles at 100% depth of discharge; some sources cite 300+ cycles.
The AGM construction delivers gas recombination efficiency of up to 99%, making the battery fully sealed, maintenance-free, and non-spillable. CSB uses wafer-thin plate technology combined with 99.99% pure lead ingot for lead oxide, plate grids, and other lead components, contributing to enhanced performance and longevity.
Storage: The battery can be stored for 6+ months at 25°C before requiring a recharge. At higher temperatures, shorter intervals apply — an important consideration for trade buyers managing bulk stock. Manufactured in ISO9001 and ISO14001 certified facilities, the HRL1234WF2FR also holds UL1973 certification (file MH66728) and UL recognition under UL1989 (file MH14533).
What Does the 'FR' Suffix Mean, and Why Does It Matter?
The 'FR' in HRL1234WF2FR denotes a UL94-V0 rated flame retardant ABS battery case. This is a specific safety-grade material classification, not a label variation.
The standard HRL1234WF2 (without the FR suffix) is physically identical in voltage, capacity, dimensions, and terminal type. The difference is the case material. In fire-sensitive environments, the FR variant is not optional; it is a requirement.
Fire alarm panels, emergency lighting systems, and UPS installations in public buildings must comply with UK standards including BS EN 54, BS 5839, and BS EN 50171. All of these carry battery safety requirements. Specifying the non-FR variant in a fire alarm or emergency lighting application could create a genuine compliance and liability risk for installers and facilities managers.
This is particularly relevant for NHS trusts, schools, local authorities, and commercial alarm installers. If your application involves a fire alarm panel or emergency lighting, always specify the FR variant.
This is one of the most common points of confusion we see among buyers. At hardwarexpress, we stock the correct FR variant and can advise trade buyers on the right specification for their project. If you are unsure, get in touch before ordering.
UPS Compatibility: Which Systems Does the HRL1234WF2FR Replace?
Many buyers do not realise that CSB Energy Technology is an OEM supplier to APC, Eaton/MGE, Powerware, Socomec, Emerson/Liebert, and Chloride/Masterguard. That means a significant number of branded UPS units already ship with CSB batteries inside them.
The HRL1234WF2FR is a factory-equivalent replacement, not a generic or downgrade substitute. When you fit this battery, you are installing the same quality that the UPS manufacturer originally specified.
Key compatible UPS families include:
- APC Back-UPS series
- APC Smart-UPS series
- APC Back-UPS Pro series
- Eaton/MGE UPS systems
- Powerware UPS systems
The F2 terminal (Faston Tab 250) is the standard connector used across the majority of small-to-medium UPS units in this capacity class, so physical compatibility is rarely an issue.
Before ordering, we always recommend cross-referencing your existing battery label (voltage, Ah rating, and terminal type) and checking your UPS manual. If you are uncertain, contact us for compatibility advice. For businesses replacing multiple UPS units across a site, hardwarexpress offers large-order enquiries and trade account pricing to help manage costs.
Approved Applications Beyond UPS Systems
The HRL1234WF2FR is approved for a broad range of standby and cyclic applications:
- UPS backup power
- Fire alarm panels
- Security alarm systems
- Emergency lighting
- Medical devices
- Powered wheelchairs and mobility scooters
- Telecommunications equipment
The HRL series suits these roles because of its high-rate discharge capability, long standby life, sealed maintenance-free design, and (in the FR variant) flame retardant case. For medical and mobility applications, the non-spillable, sealed AGM construction meets the requirements for safe use in enclosed or portable equipment.
Transport compliance is also worth noting for distributors and export buyers. The HRL1234WF2FR is approved under IATA/ICAO Special Provision A67 for air freight, classified as non-hazardous for water transport under MG Amendment 27, and recognised by DOT as 'Dry charge' under 49 CFR 171-189 for surface transport.
When to Replace Your UPS or Alarm Battery
VRLA batteries in float/standby applications typically deliver a real-world service life of 4 to 6 years, even when the design life is rated higher. Environmental factors, particularly ambient temperature, play a significant role in how quickly capacity degrades.
Common signs of a failing UPS battery include:
- UPS alarm beeping or warning indicators
- Noticeably reduced runtime during power cuts
- Swollen or leaking battery case
- Battery age exceeding 4 to 5 years
- A failed UPS self-test
Over 60 million ageing VRLA UPS units worldwide are approaching end-of-life, driving a significant replacement wave. UK businesses are very much part of this cycle. Battery replacement services now account for nearly 35% of UPS market income as installed fleets mature.
There is a seasonal factor too. Battery degradation accelerates in summer heat, making Q3 (July through September) the peak period for UPS battery failures. Proactive replacements planned now are far preferable to an unplanned failure during a critical period.
For trade buyers holding bulk stock: store batteries at 25°C, recharge every 6 months if unused, and rotate stock to avoid capacity loss before installation. Old lead acid batteries must go through an approved recycling scheme under UK WEEE and battery disposal regulations. We can advise trade and NHS customers on compliant disposal routes.
Why Choose the Genuine CSB HRL1234WF2FR?
Cheaper third-party alternatives exist, but they may not meet the same UL94-V0 flame retardant standard, match the cycle life ratings, or come from ISO-certified manufacturing facilities. In fire alarm and emergency lighting applications, that difference is about compliance and liability, not just performance.
CSB's credibility is backed by ISO9001 and ISO14001 manufacturing standards, UL certifications, and OEM supply relationships with the world's leading UPS brands. Roughly 47% of SMEs still prefer VRLA batteries over lithium-ion alternatives, largely because upfront costs for lithium exceed VRLA by more than 30%. The HRL1234WF2FR delivers long-life performance at a price point that makes financial sense for most organisations.
At hardwarexpress, we have been trading since 2004 and stock the full CSB range. High stock levels mean we can offer same-day dispatch with next-day delivery across the UK via reputable carriers. Trade customers benefit from dedicated trade account pricing, a large order enquiry service, and click-and-collect from our Coventry store. That combination is ideal for alarm installers, facilities managers, and NHS procurement teams who need reliable supply without delays.
Ready to order? View the HRL1234WF2FR on our product page, request a trade account, or contact us directly for bulk order pricing.
Summary: Is the HRL1234WF2FR Right for Your Application?
The CSB HRL1234WF2FR is a 12V 9Ah high-rate AGM VRLA battery with a UL94-V0 flame retardant case, F2 terminals, up to 8 to 10 years of design life, and ISO-certified manufacturing. It is compatible with a wide range of UPS, fire alarm, and emergency lighting systems from major brands.
If your application involves a fire alarm panel, emergency lighting, or any fire-sensitive environment, always specify the FR variant. Before ordering, confirm the terminal type and voltage match your existing battery.
At hardwarexpress, we keep the full CSB range in stock for same-day dispatch and next-day delivery. Trade accounts, bulk pricing, and expert advice are available for complex or large-scale requirements. Local trade customers are welcome to use our click-and-collect service from our Coventry store. Get in touch or place your order today.
