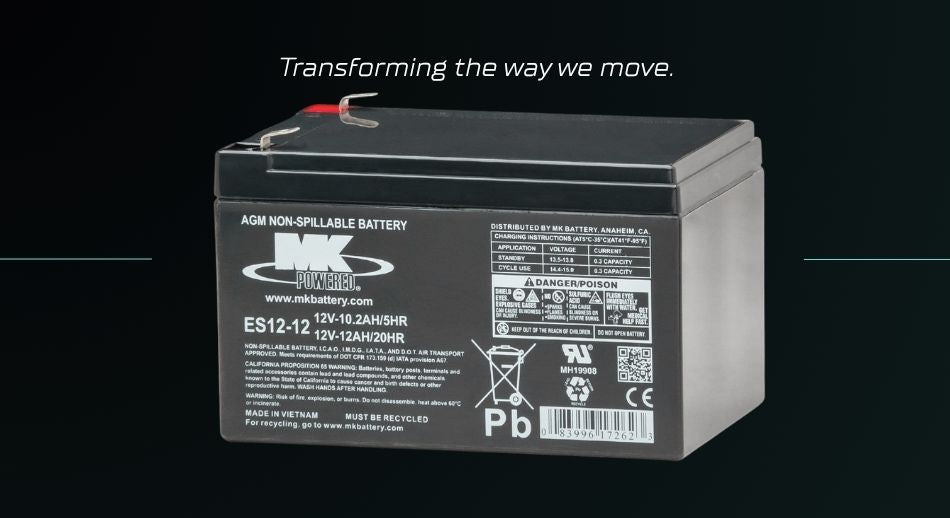

What Is the MK ES12-12 Battery?
The MK ES12-12 is a 12V, 12Ah sealed, maintenance-free VRLA (Valve Regulated Lead Acid) AGM battery fitted with F2 (Faston tab 250) terminals. Manufactured by East Penn Manufacturing under the MK Battery brand, it is one of the most respected battery producers in the world.
Every unit is produced under ISO 9001 and ISO 14001 certified processes and carries UL Listing. Each battery passes more than 250 individual quality control checks before leaving the factory, setting it apart from generic alternatives.
Across the UK, this 12V 12Ah AGM battery is trusted in UPS backup systems, intruder alarms, healthcare mobility equipment, and emergency lighting installations where failure is not an option.
MK ES12-12 Technical Specifications
Getting the physical fit right matters. The MK ES12-12 measures 151mm (L) × 98mm (W) × 93mm (H) and weighs approximately 4.02kg. These compact dimensions make it a drop-in replacement for a wide range of small-to-mid-size UPS units, alarm panels, and mobility devices.
Nominal capacity varies by discharge rate. At the standard 20-hour rate, the battery delivers its full 12Ah (0.6A to 10.50V). At the 10-hour rate, capacity is 11.4Ah; at the 5-hour rate, it provides 10.2Ah. Under a 1C discharge (12A), usable capacity is 6.8Ah. Understanding these figures is essential when sizing batteries for applications with high instantaneous loads.
Internal resistance sits at approximately 11 mΩ. For a battery in this size class, that is impressively low and indicates strong power delivery capability during short, high-current events such as UPS switchovers or alarm sounder activation.
The case and cover are moulded from ABS (Acrylonitrile Butadiene Styrene), a thermoplastic known for its impact resistance and structural integrity. This makes the ES12-12 well suited to vibration-prone environments and outdoor enclosure installations.
Forged terminals and bushings guarantee a leak-free seal, a critical consideration for industrial and enclosed installations where acid seepage could damage surrounding equipment.
Self-discharge is rated at less than 2% per month. For trade buyers holding stock, this means batteries can sit on the shelf for several months without significant capacity loss, simplifying stock rotation. Under normal operating conditions, the MK ES12-12 has a design life of 3 to 5 years.
Individual Plate Formation (IPF) Technology Explained
MK Battery uses a process called Individual Plate Formation (IPF). Rather than forming plates in bulk, each plate is individually formed to ensure precise voltage matching among cells within the battery.
The practical benefit is consistent cell performance across the entire battery. This is particularly important in multi-battery UPS string configurations, where a single weak cell can drag down the whole string and cause premature system failure.
Many generic 12V 12Ah AGM batteries skip IPF entirely, resulting in uneven cell performance, imbalanced strings, and shorter service life. For facilities managers and installers specifying batteries for critical standby systems, IPF technology is a genuine differentiator worth paying for.
ES12-12 vs ES12-12SA: Which Variant Do You Need?
This is the single most important decision when ordering, and it is frequently misunderstood. MK produces two variants of this battery, each optimised for a different duty profile.
The ES12-12 (standard) is optimised for cyclic applications, where the battery is regularly discharged and recharged. Think mobility scooters, stair lifts, portable equipment, and solar energy storage.
The ES12-12SA (Security & Alarm) is optimised for standby/float applications, where the battery sits on continuous float charge and only delivers power during a mains failure. Alarm panels, fire detection systems, emergency lighting, and UPS units all fall into this category.
Choosing the wrong variant can significantly reduce battery life. An ES12-12 placed on permanent float charge will degrade faster than the SA variant designed for that exact purpose. This is a common and costly mistake, particularly among alarm installers and facilities managers who may not be aware both variants exist.
Quick-reference guide:
- Alarm panels, fire systems, emergency lighting, UPS standby → ES12-12SA
- Mobility equipment, solar storage, cyclic UPS, portable devices → ES12-12
For UK compliance, standards such as BS EN 54 and BS 5839 (fire alarm systems) and BS EN 50171 (emergency lighting) all require reliable sealed standby batteries. The ES12-12SA is the correct specification for these regulated installations.
Applications: Where the MK ES12-12 Is Used
UPS and standby power: UK data centre floor space is projected to grow 6 to 8% annually through 2030, and stationary AGM batteries account for 38 to 42% of the UK AGM battery market by value. UPS battery replacement cycles typically run every 5 to 7 years, making the ES12-12 and ES12-12SA an ideal fit for small-to-mid UPS units across offices, server rooms, and retail environments.
Alarm and security systems: The ES12-12SA is widely deployed in intruder alarm panels and CCTV backup power across both commercial and residential installations. Its low self-discharge rate ensures the battery holds charge during extended periods without mains interruption.
Emergency lighting and exit signs: Compliant with BS EN 50171 requirements, the sealed construction and reliable standby performance make it a practical choice for emergency lighting systems in public buildings, schools, and hospitals.
NHS and healthcare: MK is the number-one choice for leading wheelchair and mobility scooter manufacturers. Stair lifts and patient lifts rely on the ES12-12's cyclic AGM performance to deliver consistent, safe operation day after day.
Solar and SCADA/telemetry: Low self-discharge and a fully sealed design make the ES12-12 suitable for remote monitoring stations and renewable energy storage, where batteries may go weeks between maintenance visits.
Air transport approved: The MK ES12-12 carries ICAO, IATA, and DOT non-spillable ratings, making it one of the few batteries in its class approved for air freight. This is a genuine advantage for organisations deploying field-portable or emergency equipment that needs to be shipped by air.
Why Choose MK Over Generic 12V 12Ah AGM Batteries?
Quality control: Over 250 QC checks per unit, backed by ISO 9001 manufacturing consistency. Generic alternatives often undergo minimal testing with unverified production standards.
IPF technology: Cell matching through Individual Plate Formation is critical for multi-battery UPS strings. One weak cell in a generic battery can bring down an entire backup system.
Environmental credentials: MK Battery operates an EPA-permitted recycling facility that recycles virtually 100% of every battery processed. Combined with ISO 14001 certification, this aligns with NHS and public sector green procurement policies.
Import cost considerations: UK buyers face 2.5 to 4.0% MFN tariffs on non-EU AGM batteries. Sourcing from an established UK distributor such as hardwarexpress avoids hidden import costs, customs delays, and uncertain lead times.
Total cost of ownership: A longer design life, lower self-discharge, and consistent cell performance reduce replacement frequency and downtime costs. Over a five-year period, a premium MK battery often works out cheaper than cycling through two or three budget alternatives.
Buying the MK ES12-12 from hardwarexpress
hardwarexpress has been supplying batteries and power solutions to trade and public sector customers since 2004, bringing over 20 years of specialist experience across every application covered in this guide.
We hold high stock levels on the full MK Battery range, including both the ES12-12 and ES12-12SA variants. Most orders are dispatched same day, with next-day delivery available via trusted UK carriers.
NHS, schools, universities, and government bodies can order via purchase order, with dedicated support available for procurement teams. Trade accounts are available for business customers, and all pricing is displayed ex-VAT for easy comparison.
Local buyers can take advantage of click-and-collect from our physical store in Coventry. Stocking both variants means you get the correct specification first time, avoiding costly returns and project delays.
Final Verdict: Is the MK ES12-12 Right for Your Application?
The MK ES12-12 is a premium, dual-purpose 12V 12Ah AGM battery built for professionals who cannot afford backup power failure. IPF technology, over 250 quality control checks, and ISO-certified manufacturing set it apart from generic alternatives on the market.
The most important decision is choosing between the ES12-12 (cyclic) and ES12-12SA (standby/float). Get this right and you will maximise both performance and service life.
If you are unsure which variant suits your application, or you would like to set up a trade account, contact the hardwarexpress team. With over 20 years of supply experience, same-day dispatch, and the full MK range in stock, we are here to make sure you get the right battery, delivered fast.
