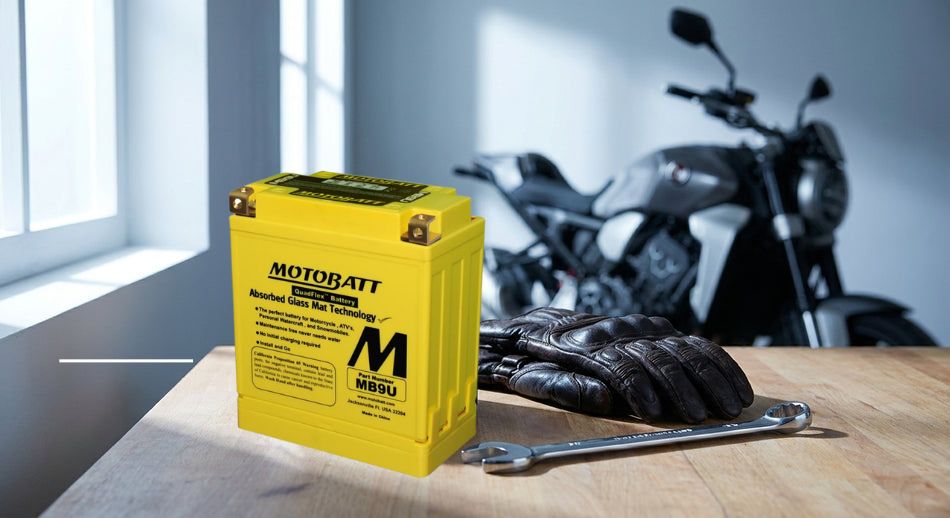

What Is the Motobatt MB9U?
The Motobatt MB9U is a 12V 11Ah sealed AGM powersport battery from Motobatt's QuadFlex product line. It delivers 140–166 CCA (depending on the test standard used), measures 136mm × 76mm × 133mm, and weighs 3.40 kg. These are strong headline numbers for a battery in this class.
What sets the MB9U apart is Motobatt's patented QuadFlex 4-terminal design: two positive and two negative terminals built into the top of the battery. This gives you flexible cable routing and fitment across a wide range of motorcycles, ATVs, and scooters, often without needing adapters or modifications.
The MB9U arrives factory-activated and fully charged above 12.5V. No acid filling and no pre-charging are required. It is a genuine plug-and-play replacement. Motobatt, founded in the US in 2008, is the Official Battery of AMA Pro Road Racing and AMA Pro Flat Track, so the engineering pedigree behind this battery is well established.
MB9U Key Specifications at a Glance
- Voltage: 12V
- Capacity: 11Ah (10HR rate)
- CCA: 166A (EN) / 140A (SAE)
- Dimensions: 136mm (L) × 76mm (W) × 133mm (H)
- Weight: 3.40 kg
- Group Size: B9-B
- Technology: Sealed AGM (Absorbent Glass Mat)
Two different CCA figures are quoted for the MB9U across UK retailers. Motobatt's official spec sheet lists 166 CCA, measured using the EN (European) test standard. Many UK retailers quote 140 CCA, which reflects the SAE (American) standard. This is not a product inconsistency; it is simply a difference in test methodology. Both figures describe the same battery's ability to deliver current at -18°C for 30 seconds without voltage dropping below 7.2V.
Inside, the MB9U uses 99.99% pure lead plates that are larger and thicker than typical OEM designs. By maximising the internal space, Motobatt delivers up to 20% more capacity than standard batteries of the same physical size. The military-grade AGM separators resist vibration and dendrite damage, which matters significantly for off-road use and classic bikes with older mounting hardware.
Who Is the MB9U Compatible With? Full Fitment Guide
The MB9U is compatible with over 250 motorcycle, scooter, ATV, UTV, and snowmobile models. It directly replaces 21+ OEM part numbers, making it one of the most versatile batteries in its size class.
OEM part numbers replaced: YB9A, YB9B, YB7A, YB7LA, YB9AA, YB9A2, YB9LA2, YB9LB, YB9B2, YB9LB2, 12N7-3A, 12N7-3B, 12N7D-3B, 12N7-4A, 12N7-4B, 12N9-3A, 12N9-3B, 12N9-3A-1, and 12N9-4B-1.
For UK buyers, here are some confirmed fitments across classic and modern models:
- 1967 BSA Thunderbolt
- 1974 Triumph T150
- 1991 Yamaha XV535
- 2005 Honda CB400SS
- Various Kawasaki, Aprilia, and Triumph models
The QuadFlex 4-terminal design is particularly valuable for pre-1980s British and Japanese bikes, where original terminal configurations are often obsolete or non-standard. With two positive and two negative terminals, you can route cables to match your specific frame layout without sourcing adapters or fabricating brackets.
Every MB9U ships with a complete hardware kit: stainless steel fastening screws, threaded brass multi-fit terminals, spacers, and an Allen wrench. Everything needed for installation is in the box.
MB9U Performance: AGM Technology Explained
AGM stands for Absorbent Glass Mat. Instead of free-flowing liquid acid, the electrolyte is absorbed into fibreglass mats sandwiched between the lead plates. The result is a battery that is fully sealed, spill-proof, and completely maintenance-free. You will never need to top up with distilled water.
For UK riders, the MB9U's low self-discharge rate is a standout feature. If your bike sits in a garage from October through to March (as many classic and vintage machines do), the MB9U holds its charge far better than a conventional flooded battery during those idle months.
AGM chemistry also maintains cranking performance more reliably in cold temperatures. That matters during a British winter, when a flooded battery may struggle to turn over a cold engine. AGM batteries generally offer around twice the lifespan of conventional flooded types, and the MB9U typically lasts 3 to 5 years in powersport applications with proper care. One verified customer reported a unit lasting 7 years in a vintage Yamaha AT-1, which speaks to the durability of the design.
Modern motorcycles increasingly carry accessories such as GPS units, heated grips, dashcams, and USB chargers. These draw more current than older OEM batteries were designed to handle. The MB9U's 20% extra capacity over standard replacements provides a meaningful buffer for these higher electrical loads.
MB9U vs Conventional Flooded Batteries: Is the Upgrade Worth It?
For most riders, the answer is yes. Here is how the MB9U compares to conventional flooded batteries on the metrics UK buyers care about most.
- Lifespan: AGM batteries last roughly twice as long as flooded equivalents. The MB9U's typical 3–5 year service life compares favourably to the 24–30 month average replacement interval for conventional motorcycle batteries.
- Maintenance: Zero. No acid checks, no water top-ups, no terminal corrosion from venting.
- Vibration resistance: Military-grade AGM separators handle rough roads and off-road use far better than flooded designs.
- Cold-weather cranking: AGM chemistry delivers more consistent starting power at low temperatures.
The MB9U delivers up to 55% more capacity than old conventional flooded batteries of the same case size. For classic bike owners replacing a legacy battery, that is a significant performance improvement. AGM batteries now hold approximately 25% of the global motorcycle battery market share, driven largely by this lifespan advantage.
Lithium batteries cost two to three times more than the MB9U and offer weight savings, but for the majority of riders the MB9U provides a high-performance, cost-effective AGM option. At approximately £53–£58, it sits in the mid-range premium bracket and offers strong value for the performance and warranty provided.
Storage, Maintenance & Charging Guidance for the MB9U
Always use a smart AGM-compatible charger with the MB9U. The maximum recommended charge rate is 1.3A. Conventional trickle chargers not designed for AGM batteries can cause overcharging and reduce battery life.
For storage, keep the MB9U above 12.5V. If voltage drops below 12.0V, recharge before storing to prevent sulphation, which permanently reduces capacity. A quality smart charger is essential for UK riders laying up bikes over winter.
The MB9U's low self-discharge rate means it holds charge well during storage, but best practice is to apply a maintenance charge every 3 months for long-term battery health. Because the MB9U is fully sealed, there is no need to top up with distilled water at any point.
Warranty and What to Expect
The MB9U comes with a standard 12-month limited warranty. Some retailers and Motobatt USA direct offer an extended 2-year replacement warranty, double the 6–12 month industry standard for powersport batteries. Check the warranty terms at point of purchase and retain your proof of purchase.
This warranty coverage reflects Motobatt's confidence in the MB9U's build quality. The MB9U holds a 4.9 out of 5.0 average rating from 180 verified customer reviews, an exceptional score for any powersport battery.
Why Buy the Motobatt MB9U from hardwarexpress?
At hardwarexpress, we have been supplying batteries to trade and public customers across the UK since 2004, giving us over 20 years of hands-on experience with the products we sell.
We maintain high stock levels, enabling same-day dispatch on most products with next-day delivery via trusted carriers. If you are local to Coventry, our click-and-collect option lets you pick up your order from our physical store.
We support businesses, NHS organisations, schools, and universities through purchase orders, and trade accounts are available for workshop and fleet customers. Ex-VAT pricing is displayed for trade buyers, making it straightforward for workshops and fleet operators to manage battery costs.
We stock entire ranges from leading manufacturers, so if you are a workshop looking to consolidate battery SKUs with a single reliable supplier, hardwarexpress is built for exactly that. Motobatt's consolidation of 184 OEM part numbers into just 34 QuadFlex batteries makes stock management even simpler.
Final Verdict: Is the Motobatt MB9U Right for Your Bike?
The Motobatt MB9U combines universal QuadFlex fitment, factory-activated plug-and-play installation, 20% more capacity than OEM, military-grade AGM construction, and a strong warranty into a single, well-priced package.
It is an ideal choice for classic and vintage motorcycle owners upgrading from flooded batteries, riders running accessory-heavy modern bikes, ATV and quad owners, and workshops looking to reduce battery SKU complexity. With 21+ OEM cross-references, the MB9U removes the guesswork for riders who are unsure of their exact battery reference.
Check fitment for your machine and order from hardwarexpress with same-day dispatch available on stocked items. If you need help choosing the right battery, our team is here to assist.
