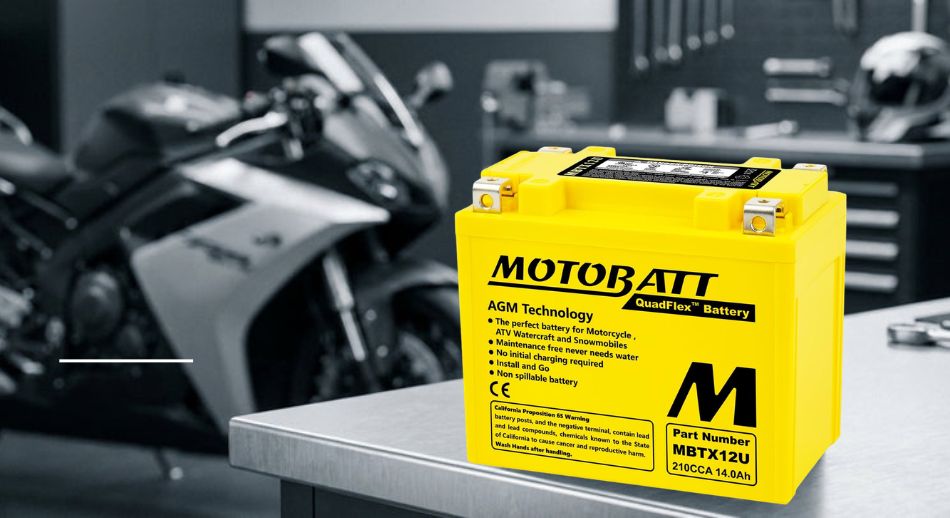

What Is the Motobatt MBTX12U?
The Motobatt MBTX12U is a 12V, 14Ah sealed AGM battery from Motobatt's patented QuadFlex powersport range. It arrives factory-activated and fully charged, so there is no acid filling or pre-charging required. Unbox it, fit it, and ride.
Compatible with over 250 motorcycle models (including many popular UK bikes), the MBTX12U holds the title of Official Battery of AMA Pro Road Racing and AMA Pro Flat Track. That motorsport endorsement reflects real-world reliability under competitive conditions.
It also sits within a rapidly growing market. The global motorcycle battery sector was valued at roughly £7.5 billion in 2024 and is expanding at around 4.7% annually, with AGM batteries holding the largest share thanks to their low-maintenance, spill-proof design.
Key Specifications and Physical Dimensions
Here are the core specs you need to know:
- Voltage: 12V
- Capacity: 14Ah (10-hour rate)
- Cold Cranking Amps (CCA): approximately 200–210A
- Dimensions: 151mm (L) x 87mm (W) x 130mm (H)
- Weight: 4.40kg
A note on the CCA figure: you will see 200 CCA quoted on some sites and 210 CCA on others. This discrepancy comes down to regional testing standards (SAE vs EN). Neither figure is wrong; they simply reflect different measurement protocols. If the exact number matters for your application, verify against the official Motobatt spec sheet for your region.
The MBTX12U ships with two bottom spacers (5mm and 10mm, totalling 15mm). These accommodate height differences between battery trays across different motorcycle models. If your tray is deeper than the battery, stack the spacers underneath until the terminals sit at the correct height. This is a common point of confusion for first-time buyers, but it is straightforward once you understand the purpose.
Worth noting: the MBTX12UHD is a black-cased variant with technically identical specifications. The only difference is the case colour, making it a popular choice for custom builds and Harley-Davidson owners who prefer a stealthier look.
UK retail pricing typically falls between £69.00 and £87.25 inc. VAT, placing the MBTX12U firmly in the mid-to-premium segment.
QuadFlex Technology Explained: Why Four Terminals Matter
Most motorcycle batteries have two terminals: one positive, one negative. The Motobatt MBTX12U has four. Its patented QuadFlex design provides two positive and two negative terminals, and the practical benefits of this layout are significant.
First, the four-terminal configuration shortens the current path between the battery and your bike's cables. A shorter path means less resistance and a stronger inrush of current when you hit the starter. During cold UK winter mornings, when engine oil is thick and batteries are under the most stress, that extra cranking power can be the difference between a clean start and a flat click.
Second, the two unused terminals provide a dedicated, safe attachment point for accessories. Heated grips, GPS units, USB chargers, and trickle charger leads can all be wired directly to the spare terminals. On a standard two-terminal battery, all accessory wiring has to daisy-chain off the main terminals, creating a cluttered connection point and increasing the risk of voltage drop under load.
With QuadFlex, your main power cables and your accessory wiring each get their own clean connection. It is a simple idea that solves a genuine problem for riders running accessory-heavy setups.
This is a patented design unique to Motobatt. You will not find it on Yuasa, Scorpion, or any other competitor equivalent.
AGM Construction: Military Heritage, Powersport Performance
AGM (Absorbent Glass Mat) technology was originally developed for military aircraft, where power density, low weight, safety, and absolute reliability were non-negotiable. That engineering heritage underpins every aspect of the MBTX12U's construction.
The battery uses heavy-duty Pure Lead Calcium cast grids paired with military-grade AGM separators. This combination delivers superior vibration resistance, a critical advantage for off-road riding, ATV use, and any application where the battery takes a constant physical beating.
Because the electrolyte is absorbed into the glass mat separators rather than sloshing freely, the MBTX12U is fully sealed and spill-proof. You can mount it in any orientation without risk of acid leakage, and there is no ongoing acid maintenance to worry about.
The self-discharge rate is extremely low. For UK seasonal riders who store their bikes over the winter months, this is a genuine practical benefit. The battery holds its charge far longer than a conventional flooded unit, reducing the risk of sulphation damage during extended storage.
A common question for UK riders is whether to choose AGM or lithium. Lithium batteries are lighter, but they suffer from reduced performance in cold temperatures and can be unpredictable in wet, cold UK winters. AGM chemistry performs reliably across the full range of British weather conditions, making it the safer, more predictable choice for most riders in this climate.
Fitment Guide: Compatible Motorcycles and OEM Cross-References
The MBTX12U fits over 250 motorcycle, scooter, ATV, UTV, and snowmobile models. Here are some of the most popular confirmed UK fitments:
- Honda CBR600F4i (2001–2006)
- Yamaha V Star 650 (1998–2016)
- Kawasaki Ninja 500R (1994–2009)
- Suzuki SV650 (1999–2009)
- Triumph Bonneville 865 (2009–2015)
- BMW R1200GS (2018)
- Aprilia Pegaso 650 (2005–2012)
- Harley-Davidson XL1200 Sportster
The MBTX12U is a direct replacement for the following OEM part numbers:
- Yuasa: YB12BB2, YTX12-BS, YTX14-BS, YTX14H-BS, YTX14L-BS, KMX14BS, YTX15L-BS
- Deka: ETX12, ETX14
- Odyssey: PC545
This broad cross-compatibility reflects Motobatt's wider strategy: just 12 QuadFlex part numbers cover 80% of the entire powersport battery market, making the MBTX12U a practical universal solution for motorcycle dealers, fleet operators, and multi-bike households looking to standardise on a single reliable battery.
Always verify fitment against your specific model and year before purchasing. Battery tray dimensions and terminal orientations can vary between production years of the same model.
Warranty, Registration, and What Sets Motobatt Apart
Every MBTX12U comes with a standard 1-year warranty. Register the battery with Motobatt within 21 days of purchase and this extends to a full 2 years. Most competitor product pages fail to mention this clearly, so mark the date and register promptly.
For context, Yuasa and Scorpion typically offer between 6 months and 1 year of warranty cover. Motobatt's 2-year registered warranty is double the industry norm.
Independent customer feedback supports the reliability claims. The MBTX12U holds a 4.9 out of 5 average rating from 252 customer reviews on Tayna.co.uk, with reviews from late 2025 confirming ongoing satisfaction. Keep your proof of purchase safe, and do not let that 21-day registration window slip past.
Charging Compatibility and Maintenance Tips
The MBTX12U requires an AGM-compatible smart charger. Standard chargers designed for flooded batteries can overcharge and damage the sealed AGM cells. Lithium-specific chargers are also incompatible and must not be used.
One of the best practical uses for the spare QuadFlex terminals is permanently mounting a SAE or Anderson connector for your trickle charger. This lets you plug in a maintenance charger during winter storage without opening the seat or disturbing the main power connections.
During long storage periods, check the open-circuit voltage periodically. A fully charged AGM battery should read approximately 12.8V. If it drops below 12.4V, top it up with your smart charger.
Because the MBTX12U arrives factory-activated and fully charged, no initial charging is needed before first use. Fit it and go.
