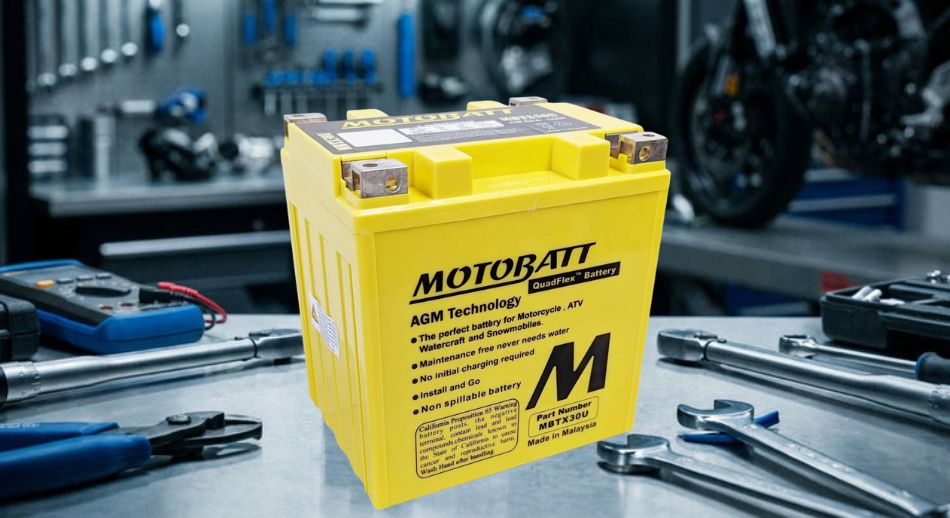

What Is the Motobatt MBTX30U?
The Motobatt MBTX30U is a 12V AGM (Absorbed Glass Mat) powersport battery from Motobatt's QuadFlex product line. It arrives factory activated and completely maintenance-free, with no acid filling required. Unbox it and install it.
Motobatt was founded in the US in 2008 and holds the distinction of being the Official Battery of AMA Pro Road Racing and AMA Pro Flat Track. The MBTX30U ships with a 12-month standard warranty; registered dealers can offer a 2-year replacement warranty, roughly double the 6 to 12 month industry standard for powersport batteries.
Applications span motorcycles, ATVs, UTVs, jet skis, snowmobiles, and diesel generators, making it one of the most versatile AGM powersport batteries available.
MBTX30U Key Specifications at a Glance
The MBTX30U is rated at 12V with a capacity of 32 to 33Ah (10-hour rating). Its Cold Cranking Amps (CCA) figure varies by testing standard: UK EN-standard listings typically show 385 CCA, while US SAE-standard sources quote 440 to 450 CCA. This discrepancy is not a product defect. EN and SAE use different test protocols, temperatures, and discharge durations, so the numbers are not directly comparable. If you see both figures quoted for the same battery, the testing standard is the reason.
Physical dimensions are 166mm (L) × 126mm (W) × 175mm (H), with a total height of 192mm when the spacer is fitted. Weight sits at approximately 9.7 to 10.2 kg.
Motobatt claims the MBTX30U delivers 20% more CCA and 20% more Ah capacity compared to competitive powersport batteries of the same physical size. The company also states that its proprietary manufacturing process uses space inside the standard battery case to achieve up to 30% more capacity versus OEM batteries.
The operating temperature range is -40°C to 60°C, covering the full spectrum of UK conditions and beyond.
UK retail pricing currently falls between approximately £148.80 and £169.00, placing the MBTX30U firmly in the mid-to-premium segment of the motorcycle battery market.
QuadFlex 4-Terminal Technology Explained
The defining feature of the MBTX30U is Motobatt's patented QuadFlex 4-terminal design. The battery has two positive and two negative terminals, making it the world's only 4-post motorcycle battery. This layout allows flexible cable routing to suit different battery compartment orientations without adapters or custom brackets.
During installation, the MBTX30U can be rotated 180 degrees to match non-standard compartment layouts. This is particularly useful for classic motorcycles where battery tray dimensions and cable positions vary widely between models and years.
The extra terminals also provide a practical benefit for riders running accessories. GPS units, heated grips, phone chargers, and auxiliary lighting can be connected to the spare terminals directly. This eliminates terminal stacking (piling multiple ring connectors onto a single post), a common cause of loose connections and poor contact.
Internally, the MBTX30U uses military-grade AGM separators originally developed for military applications. These separators provide strong vibration resistance, which matters for motorcycles and off-road vehicles where engine vibration and rough terrain are constant factors.
Motobatt describes the internal architecture as 'Power Balanced', meaning the design optimises the trade-off between CCA and Ah capacity rather than sacrificing one for the other. The plates are constructed from 99.99% pure lead and are larger and thicker than typical OEM designs, contributing to both longevity and performance.
MBTX30U OEM Cross-Reference: Which Batteries Does It Replace?
One of the strongest reasons to choose the MBTX30U is its broad cross-reference coverage. If you are searching by OEM part number, here is what it replaces:
Yuasa replacements:
- YIX30L
- YB30L-B
- YB30CL-B
- 53030
- Y60N24 series
- GYZ32HL
- 52515
- YB30LB
DEKA replacements:
- ETX30L
- ETX30LA
Odyssey replacement:
- PC925 (side-mounted)
In total, the MBTX30U replaces over 14 OEM part numbers across multiple brands. Before purchasing, always verify the physical dimensions and terminal orientation against your specific vehicle's requirements.
This cross-reference breadth is a key reason the MBTX30U is popular with workshops and trade buyers. Stocking a single SKU that covers multiple fitments reduces inventory complexity and speeds up turnaround on jobs.
Vehicle Compatibility: Motorcycles, ATVs, and Beyond
The MBTX30U fits a wide range of classic and modern motorcycles. BMW compatibility includes the K75, K100 8-valve, R60, R75, R80, R90, and R100 twins. For Harley-Davidson, it covers the FL/FLH Touring series. Moto Guzzi V7 owners will also find it a direct fit.
Beyond motorcycles, the battery is used in ATVs, UTVs, personal watercraft (jet skis), and snowmobiles. A less commonly documented application is diesel generators, including HGI 6kVA Yanmar units. This use case has been confirmed through customer reviews and is particularly relevant for trade and commercial buyers who need reliable starting power for site equipment.
The MBTX30U is especially well suited to classic bikes. AGM technology works reliably with older charging systems that may not produce the precise voltage regulation lithium batteries demand. Unlike lithium alternatives, AGM performs consistently in cold weather without the voltage sensitivity issues that can leave riders stranded on a winter morning. Because it is sealed and maintenance-free, there is no need to check electrolyte levels on a bike that might sit in a garage for weeks at a time.
MBTX30U vs MBTX30UHD: Which Should You Choose?
The Motobatt MBTX30UHD is the black-cased variant of the MBTX30U. Performance and specifications are identical between the two. The only difference is cosmetic: Harley-Davidson owners often prefer a black battery that blends with chrome components rather than the standard yellow Motobatt casing.
If performance is your sole consideration, either variant will serve you equally well. Harley-Davidson FL/FLH buyers who want a cleaner visual finish should consider the MBTX30UHD. For all other applications, the standard MBTX30U is the practical choice.
Charging and Storage: How to Get the Most from Your MBTX30U
The official charging specification for the MBTX30U requires a charge voltage of 14.8 to 15.0V at 20°C. Hold this voltage until the current drops below 50mA, then switch the charger to float mode. This ensures a full charge without overcharging, which can damage AGM cells over time.
We recommend using a smart AGM-compatible charger such as a CTEK or Optimate unit. These chargers automatically manage the charge profile and switch to maintenance mode when the battery is full, making them ideal for both regular use and long-term storage.
The MBTX30U's operating temperature range of -40°C to 60°C gives it a clear advantage for UK winter storage and cold-start reliability. For seasonal riders, connecting the battery to a float or maintenance charger during winter layup is the simplest way to preserve battery health and prevent sulphation.
AGM technology also benefits from a low self-discharge rate, so even if a bike sits for extended periods between rides, the MBTX30U holds its charge far better than conventional flooded batteries.
Why Choose the Motobatt MBTX30U from hardwarexpress?
At hardwarexpress, we have been supplying batteries to trade and public customers since 2004, giving us over 20 years of hands-on experience in the industry. We maintain high stock levels to enable same-day dispatch on most orders, with next-day delivery available via trusted UK carriers.
Local customers can take advantage of our click-and-collect option from our Coventry store. For businesses, NHS organisations, schools, universities, and government bodies, we offer trade accounts and accept purchase orders to simplify procurement.
Our pricing is competitive, with ex-VAT pricing displayed for trade buyers. We stock the full Motobatt range, so if you need the MBTX30U, the MBTX30UHD, or any other Motobatt product, hardwarexpress is your single-source supplier in the UK.
Final Verdict: Is the Motobatt MBTX30U Worth It?
The Motobatt MBTX30U combines genuine engineering advantages with practical versatility. The QuadFlex 4-terminal design, factory-activated AGM construction, Power Balanced CCA/Ah performance, and coverage of over 14 OEM part numbers make it a standout choice in the powersport AGM battery category.
The availability of a 2-year warranty from registered dealers, roughly double the industry norm, adds further confidence. For classic BMW, Harley-Davidson, and Moto Guzzi owners who need proven AGM reliability over lithium, the MBTX30U is the practical answer. Trade buyers and workshops benefit from stocking one versatile SKU that covers multiple fitments.
Ready to order? Check availability and buy the Motobatt MBTX30U from hardwarexpress with same-day dispatch and next-day delivery across the UK.
