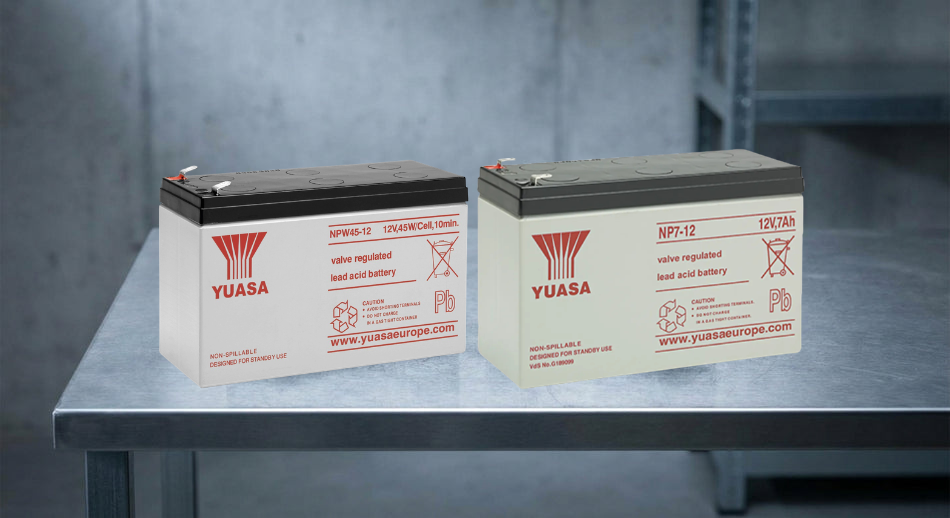

NPW45-12 vs NP7-12: Same Size, Very Different Performance
The Yuasa NPW45-12 and Yuasa NP7-12 share identical dimensions (151mm x 65mm x 97.5mm), yet they deliver meaningfully different performance in real-world use. If you are replacing a battery in a UPS, alarm panel, emergency lighting unit, or any standby application, picking the wrong one costs you either money or runtime.
This article breaks down the differences so you can order with confidence. We cover specifications, discharge behaviour, terminal compatibility, and application suitability for both models.
Three mistakes buyers make repeatedly: assuming the Ah rating is the only number that matters, ignoring the difference between F1 and F2 terminals, and overlooking the NP7-12FR flame-retardant requirement for fire and security systems. Both batteries are Yuasa VRLA AGM products, but they come from different series. The NPW45-12 belongs to Yuasa's high-rate NPW range, while the NP7-12 sits in the standard NP range. That distinction matters more than most sellers let on.
Key Specifications at a Glance
Here is a structured comparison of the core specs drawn from Yuasa's official datasheets:
- Voltage: Both 12V
- Nominal capacity (20hr rate): NPW45-12: 8.5Ah | NP7-12: 7Ah
- Watt rating: NPW45-12: 45W per cell at 10 minutes | NP7-12: not watt-rated
- Weight: NPW45-12: approx. 2.7kg | NP7-12: approx. 2.2 to 2.65kg
- Dimensions (L x W x H): Both 151 x 65 x 97.5mm
- Terminal type: NPW45-12: F2 (6.35mm) only | NP7-12: F1 (4.75mm) or F2 (6.35mm) depending on variant
- Internal resistance: NPW45-12: approx. 30.7mΩ | NP7-12: approx. 23 to 25mΩ
- Design life: Both up to 5 years at 20°C (EUROBAT Standard Commercial, 3 to 5 years)
- Discharge temperature range: NPW45-12: -15°C to 50°C | NP7-12: -20°C to 60°C
A quick note on the NPW45-12's capacity, because this causes genuine confusion. You will find this battery listed as 7Ah, 7.5Ah, 8.5Ah, or even 9Ah by different sellers. The correct Yuasa-specified figure is 8.5Ah at the 20-hour rate. The discrepancy exists because some resellers quote the capacity at shorter discharge rates, or simply copy incorrect figures from each other.
For the NPW45-12, the more meaningful metric is its watt rating: 45W per cell at 10 minutes. This tells you how much power it can deliver during the short, intense discharge that a UPS demands. Ah alone does not capture that capability.
Despite sharing identical external dimensions, the NPW45-12 is noticeably heavier. That extra 0.3 to 0.5kg reflects denser internal plate construction, which is precisely what enables its higher watt output.
High-Rate vs Standard Discharge: What It Actually Means
This is where the two batteries genuinely diverge, and it is the distinction most competitor listings fail to explain clearly.
The NPW45-12 is a watt-rated battery. Its design priority is delivering maximum power in watts over short periods. At 45W per cell over 10 minutes, it is built for the exact scenario a UPS faces: mains power fails, the battery kicks in, and it needs to supply enough power for a clean system shutdown. That burst of energy over a few minutes is what the NPW series is optimised for.
The NP7-12 is an amp-hour-rated battery. Its 7Ah capacity at the 20-hour rate means it is designed for sustained, lower-rate discharge over longer periods. Think alarm panels holding a charge for hours during a power cut, gate motors cycling intermittently, or children's ride-on toys running for extended play sessions.
In short-duration UPS discharge scenarios, the NPW45-12 can deliver up to 50% more usable power in watts than the NP7-12, despite occupying the same physical space. That is a significant difference when runtime during a power cut determines whether your server shuts down gracefully or crashes.
Looking at maximum discharge currents, the NP7-12 can handle 48A for 1 minute and has a higher instantaneous peak. The NPW45-12's maximum continuous discharge is 42A, but it sustains that high-rate output more effectively over the critical minutes that matter in a UPS application.
One important compatibility point: both batteries share the same recommended float charge voltage of approximately 13.65V. This means the NPW45-12 is charger-compatible as a drop-in upgrade in most existing UPS units that currently use an NP7-12 (F2 variant), with no charger modifications needed.
Terminal Types: A Common Source of Buyer Errors
The NPW45-12 uses only the wider F2 Faston terminal (6.35mm / 0.250"). There is no F1 variant of this battery.
The NP7-12, however, is available in two terminal variants: F1 (4.75mm / 0.187") and F2 (6.35mm / 0.250"). If your existing setup uses the narrower F1 connectors, fitting an NPW45-12 (or an NP7-12 F2 variant) without an adapter will result in a loose or incompatible connection.
Before ordering either battery, check the terminal on your existing battery or consult your UPS documentation. The terminal width is usually printed on the battery label or visible by measuring the spade connector.
The NPW45-12 is a direct drop-in replacement for the NP7-12L (the large-terminal F2 variant), the CSB GP1272F2, and the Yuasa SW280. If your current battery has the wider terminals, the swap is straightforward.
Which Applications Need Which Battery?
Choose the NPW45-12 for:
- Small UPS systems, including APC RBC2 cartridge replacements
- Emergency lighting units
- Stair lifts
- Alarm panels where high-rate backup is specified
- Bait boats and similar equipment needing short, powerful discharge
Choose the NP7-12 for:
- Intruder alarm panels (standard standby)
- Electric gate motors
- Children's ride-on toys
- Inverters
- General-purpose standby where sustained low-rate discharge is sufficient
A question that comes up regularly: "Can I use the NP7-12 instead of the NPW45-12 to save money?" The honest answer is: it depends on the application. In a UPS, the NP7-12 will physically fit, but it will provide less runtime and lower watt output during discharge. For non-UPS standby applications such as alarms or gate motors, the NP7-12 is often perfectly adequate and more cost-effective. There is no point paying for high-rate performance you will not use.
The upgrade scenario works in reverse, too. If your UPS currently uses an NP7-12 (F2 variant) and you want better performance, the NPW45-12 is a genuine upgrade: same dimensions, same charger voltage compatibility, and better short-duration watt output.
For context, the NP7-12 is probably the most widely used 12V 7Ah battery in the world. Its form factor has become the industry standard across dozens of brands. That ubiquity is a strength for general applications, but it does not make it the right choice for every scenario.
The NP7-12FR: Flame-Retardant Compliance You Cannot Ignore
The NP7-12FR is a flame-retardant variant of the NP7-12. It uses a UL94:V0-rated ABS casing instead of the standard UL94:HB casing found on both the regular NP7-12 and the NPW45-12.
In the UK, fire alarm and security systems require flame-retardant batteries. The NP7-12FR is mandatory in these installations. Neither the standard NP7-12 nor the NPW45-12 can legally substitute for the NP7-12FR in fire and security applications.
This is a compliance issue, not a performance preference. Alarm installers, NHS facilities managers, and school site managers must specify the FR variant for any fire or intruder alarm system. If you are unsure which variant your system requires, check your system documentation or consult your alarm installer before ordering.
Which Battery Should You Order?
The decision is straightforward:
- Replacing a UPS battery (especially an APC RBC2 cartridge) or need maximum short-duration watt output? Order the NPW45-12.
- Replacing a general standby battery in an alarm, gate motor, or ride-on toy? Order the NP7-12.
- Replacing a battery in a fire or security alarm system? Order the NP7-12FR specifically.
Before you add anything to your basket, double-check your terminal type: F1 or F2. It takes ten seconds and saves you a return.
Both the NPW45-12 and NP7-12 are stocked at hardwarexpress with same-day dispatch and next-day UK delivery available. We serve trade and public customers alike, including NHS trusts, schools, universities, and businesses. Trade accounts and bulk order enquiries are available through the site.
We have been trading since 2004, and our established supplier relationships with Yuasa mean we carry genuine stock at competitive prices. Both batteries offer up to 5 years of design life. The right choice depends on your application, not the price tag alone. Match the battery to the job, and it will do exactly what you need.
