What Is the Yuasa NP12-12 Battery?

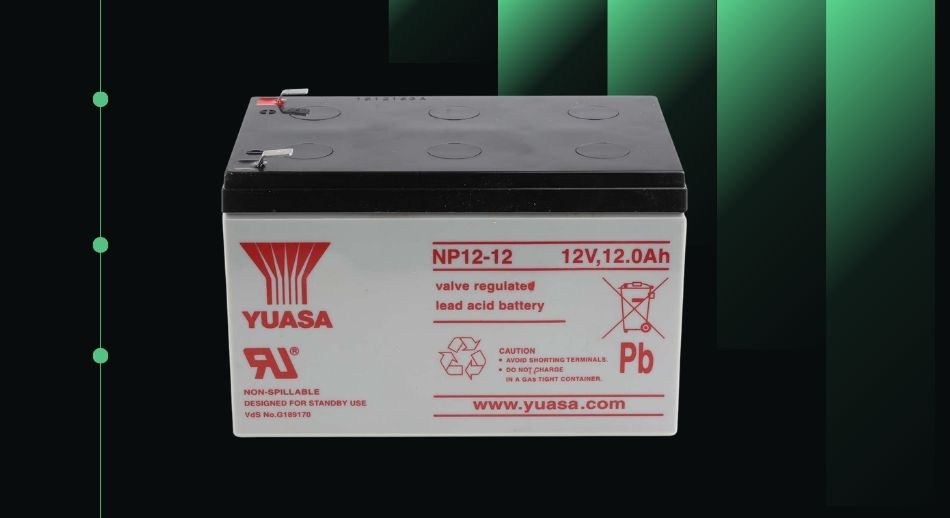

The Yuasa NP12-12 is a 12V, 12Ah valve-regulated sealed lead-acid (VRLA/AGM) battery from GS Yuasa's NP Series, engineered for standby and light cyclic applications rather than starting engines or powering vehicles.
GS Yuasa traces its origins to 1895 in Japan and ranks among the world's largest battery manufacturers. The company has produced batteries at its Ebbw Vale, Wales facility since 1982, with over 80 million units manufactured there to date.
The NP12-12 sits in the mid-to-premium price bracket, typically costing 10–25% more than generic 12V 12Ah equivalents. That premium buys verified capacity, compliance approvals, and consistent quality for systems where failure is not an option. This guide covers specifications, applications, compliance, replacement planning, and how to avoid counterfeit units.
Yuasa NP12-12 Technical Specifications
Key specifications at a glance:
- Voltage: 12V
- Capacity: 12Ah (20-hour rate)
- Dimensions: 151mm (L) x 98mm (W) x 97.5mm (H)
- Weight: 4.05 kg
- Terminals: F2 Faston (.250 in.)
- Construction: Absorbed Glass Mat (AGM)
- EUROBAT Classification: Standard Commercial, 3–5 years
- Approvals: VDS approved
The AGM construction uses Lead Calcium grids combined with Oxygen Recombination Technology. In practical terms, the battery is completely sealed and maintenance-free: no electrolyte to top up, no venting under normal conditions, and no acid spillage risk.
The valve-regulated design allows multi-orientation operation. You can install the NP12-12 on its side or upright, which is particularly useful for tight panel and cabinet installations where space is limited.
One specification that matters greatly for trade buyers holding stock: the NP12-12 has an extremely low self-discharge rate. It can be stored for up to one year at normal ambient temperatures without permanent capacity loss, so you can keep inventory on the shelf without worrying about batteries arriving at site already degraded.
The VDS approval is worth highlighting. This certification is required for fire and security system applications across Europe. If you are installing or maintaining alarm panels, the NP12-12 is a compliant choice straight out of the box.
NP12-12 vs NP12-12FR: Which Variant Do You Need?
The NP12-12FR is a flame-retardant variant of the standard NP12-12. This distinction is rarely covered by other suppliers, but it matters significantly for certain installations.
The FR variant features a UL94-V0 rated casing and complies with UL1778 flame retardant specifications. It also meets Bellcore requirements for telecommunications infrastructure. These credentials make it the correct choice for UPS environments and telecom installations where flame retardancy is a regulatory or system-level requirement.
For most alarm, CCTV, and emergency lighting applications, the standard NP12-12 is the right battery. The NP12-12FR is specified when the system manufacturer or site regulations explicitly require flame-retardant battery casings.
Before ordering, check your system or panel documentation to confirm which variant is specified. Substituting the standard NP12-12 into an environment that requires the FR variant (or vice versa) can create compliance issues during inspections. If you are unsure, our team can help you confirm the correct part.
Key Applications for the Yuasa NP12-12
The NP12-12 is used across a broad range of standby power applications:
- Fire and intruder alarm systems
- UPS backup power
- Emergency lighting
- CCTV and access control
- Telecommunications equipment
- Medical equipment
- Solar and wind energy support systems
- Portable power devices
In most of these applications, the NP12-12 sits dormant on float charge, delivering power only when mains supply fails. This standby role makes reliability and low self-discharge the two most important performance characteristics. A battery that loses capacity while sitting idle defeats the entire purpose of a backup system.
NHS trusts, healthcare organisations, and emergency services are key procurement sectors for this battery. VDS approval and brand reliability are often the deciding factors in these environments, where a failed backup battery can have serious consequences.
VRLA batteries are also gaining relevance in renewable energy and solar backup applications. Global VRLA battery shipments reached 48 million units in 2025, driven by growing demand in telecom, UPS, and renewable energy sectors. Industrial end-users accounted for 38.21% of the VRLA battery market in 2025, underscoring the NP12-12's core market position.
Understanding the EUROBAT 3–5 Year Rating and Replacement Planning
The NP12-12 carries a EUROBAT classification of "Standard Commercial, 3–5 years." This is a design life rating under normal ambient conditions (typically 20–25°C), not a guarantee of exact lifespan.
Real-world battery life depends on several factors: ambient temperature, depth of discharge, charge quality, and the installation environment. Higher temperatures accelerate chemical degradation. A battery stored in a plant room running at 30°C will age considerably faster than one in a temperature-controlled server room.
The practical takeaway for 2026: batteries installed during 2020–2022 are now entering or exceeding their EUROBAT design life. This makes 2025–2027 a peak replacement cycle for NP12-12 units across UK alarm panels, UPS systems, and emergency lighting installations.
If you are a facilities manager or alarm engineer, now is the time to audit installation dates and schedule proactive replacements. Waiting for a battery to fail during a mains outage is a risk no critical system should take.
It is also worth noting that GS Yuasa launched the SWL+ range in July 2025, offering up to 15-year design life using Hybrid Pure Lead technology. The NP12-12 remains the proven, cost-effective standard-life solution for applications where a 3–5 year replacement cycle is acceptable and budgets are tighter.
Approved Replacements and How to Verify Compatibility
The Leoch LP12-12 is a widely cited direct replacement for the Yuasa NP12-12. It offers the same 12V/12Ah rating and identical dimensions, requiring no modifications for installation.
When sourcing any replacement battery, always verify three things before ordering:
- Dimensions: Confirm the L x W x H measurements match exactly. Even a few millimetres of difference in height can prevent the battery from fitting inside a panel or cabinet.
- Terminal type: The NP12-12 uses F2 Faston (.250 in.) terminals. A different terminal type will not connect to existing wiring harnesses.
- Capacity and chemistry: Do not order based solely on voltage and Ah rating.
Be cautious when purchasing from Amazon or eBay. Unbranded or unverified 12V 12Ah batteries sold on these platforms may not meet the capacity, self-discharge, or approval standards of genuine units. Counterfeit and grey-market SLA batteries are a growing concern; purchase from authorised UK distributors to ensure a genuine product with a traceable supply chain.
Charging the NP12-12 Correctly
The NP12-12 supports two charge modes:
- Float (standby) charging: For systems where the battery remains connected to a charger continuously. Float voltage is typically 13.5–13.8V.
- Cyclic charging: For applications with regular charge and discharge cycles. Cyclic voltage is typically 14.4–14.7V.
Always confirm the exact voltage settings against the official Yuasa NP Series datasheet for your specific installation. These figures are guidelines; the datasheet is the definitive reference.
Overcharging is one of the most common causes of premature failure in VRLA batteries. It accelerates water loss and plate corrosion, reducing battery life significantly. GS Yuasa offers a dedicated intelligent charger range for NP batteries, designed to apply the correct charge profile automatically.
Avoid using generic car battery chargers. They are not calibrated for VRLA/AGM chemistry and can push voltages beyond safe limits, causing irreversible damage.
Why Choose Genuine Yuasa Over Generic Alternatives?
Generic 12V 12Ah batteries are available at lower prices. That is a fact. In critical standby applications, however, the risks of going generic are real: unverified capacity ratings, higher self-discharge, and no VDS or compliance approvals.
GS Yuasa's Ebbw Vale facility has been operational since 1982, producing over 80 million batteries with more than 60% exported across Europe. That manufacturing heritage translates into consistent quality and traceable production.
For NHS trusts, healthcare facilities, fire safety systems, and emergency lighting installations, using a non-approved battery can create liability and compliance issues during system inspections. A failed audit or a false alarm callout caused by a degraded generic battery costs far more than the 10–25% price difference.
The NP12-12's modest premium is an insurance policy for system reliability. When the mains goes down, the battery must perform exactly as rated, every time.
