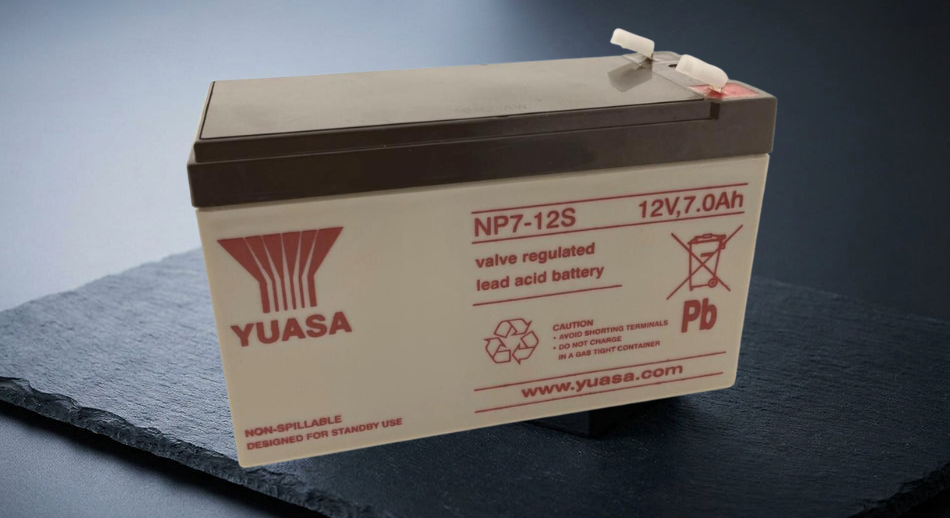

What Is the Yuasa NP7-12S Battery?
The Yuasa NP7-12S is a 12V 7Ah Valve Regulated Lead Acid (VRLA) AGM battery and one of the most widely used battery formats in the world, found in everything from alarm panels to UPS units.
A common question: what does the 'S' suffix mean? The answer is straightforward. The 'S' indicates the battery was manufactured on a newer Yuasa production line, introduced to meet increased demand. There is no difference in quality, performance, or specification compared to the standard NP7-12.
Yuasa (GS Yuasa) is one of the top five global lead acid battery manufacturers, and the NP7-12 / NP7-12S form factor has become the de facto standard for 12V 7Ah batteries across the industry.
NP7-12S Specifications at a Glance
Key specifications:
- Nominal voltage: 12V
- Nominal capacity: 7.0Ah at the 20-hour rate (0.35A to 10.5V at 30°C)
- Internal resistance: Approximately 25–30 milliohms
- Maximum discharge current: 40A
- Maximum short-circuit current: 210A
- Dimensions: 151mm (L) x 65mm (W) x 97.5–98mm (H)
- Weight: Approximately 2.65kg
- Terminals: 4.8mm (0.187") F1 Faston spade terminals
- Design life: 3–5 years in standby (float) applications at 25°C
- Cycle life: Over 1,000 discharge/charge cycles (depending on depth of discharge)
- Self-discharge: Extremely low; can be stored up to one year at normal ambient temperatures without permanent capacity loss
The NP7-12S is compliant with IEC 61056-1, IEC 60896-21, and IEC 60896-22 standards. It is UL Recognised (File No. MH16464 and MH15740) and approved for air transport under IATA A67, classified as non-spillable (UN2800).
The heavy-duty lead calcium alloy grids give the battery strong recovery from deep discharge and contribute to its extended cycle life.
NP7-12 vs NP7-12S vs NP7-12L vs NP7-12FR: What's the Difference?
This is the question that generates the most confusion. Here is a clear breakdown.
NP7-12 and NP7-12S
These are electrically and dimensionally identical: same voltage, same capacity, same dimensions, same terminals. The 'S' is an internal Yuasa production line designation only. It tells Yuasa personnel which factory line the battery came from and has no bearing on your purchasing decision. The two are fully interchangeable.
NP7-12L
This is the same battery with one physical difference: it uses larger 6.3mm (0.250") F2 Faston terminals instead of the standard 4.8mm (0.187") F1 terminals. The F2 terminals are intended for higher-current applications such as inverters. If your existing battery has the larger terminals, you need the NP7-12L.
NP7-12FR
This is the flame-retardant variant. It features a UL94V-0 rated ABS plastic case, required for fire and security alarm systems where flame retardancy is mandated by regulation.
Safety warning: the standard NP7-12 or NP7-12S must NOT be used as a direct replacement for the NP7-12FR in fire or security applications. If your existing battery is an NP7-12FR, you must replace it with the FR variant.
Quick Summary
- Existing battery is NP7-12 or NP7-12S? Either will fit. They are the same product.
- Existing battery is NP7-12FR? You must use the FR variant.
- Existing battery is NP7-12L? Check your terminal size. You need the F2 (6.3mm) version.
What Is the NP7-12S Used For?
The NP7-12S covers a broad range of applications across the UK. The most common include:
- Fire and intruder alarm panels: the single biggest application. The NP7-12S is a direct fit for popular UK panels from Texecom (Premier series), Honeywell (Galaxy series), and Pyronix (Enforcer series), among many others.
- Emergency lighting systems: UK commercial and public sector buildings must comply with BS 5266, which sets requirements for emergency lighting battery replacement intervals. The NP7-12S is a standard fit in many emergency lighting inverters.
- UPS units: small rack-mount and desktop UPS units used in offices, server rooms, and network closets commonly use this battery. With continued UK data centre investment and IT infrastructure expansion, demand for UPS replacement batteries remains strong.
- CCTV and access control systems
- Medical devices
- Portable power equipment
The sealed AGM construction allows installation in any orientation (except continuous inverted), making the NP7-12S practical for confined or awkward spaces where a traditional flooded battery would not be suitable.
Growing demand for backup power in smart homes and home security systems is also driving replacement battery searches. If your home alarm panel is beeping with a low battery fault, it likely needs an NP7-12S.
How to Know When Your NP7-12S Needs Replacing
The expected standby service life is 3–5 years at 25°C ambient temperature. That is your primary replacement trigger. Even if the battery appears to be working, proactive replacement at the 3–5 year mark is best practice for safety-critical systems such as fire alarms and emergency lighting.
Practical warning signs that replacement is overdue:
- Alarm panel displaying a low battery fault
- UPS battery warning LED or audible alarm
- Emergency lighting test failure
- Visible battery swelling or leakage
Temperature has a significant effect on lifespan. Batteries installed in warmer environments (consistently above 25°C, such as plant rooms or enclosed ceiling voids) will degrade faster. Cooler environments tend to extend life.
One practical advantage of the NP7-12S: its extremely low self-discharge rate means a stored replacement can sit on the shelf for up to one year without losing capacity. Buying a spare in advance is a sensible approach, particularly for facilities managers responsible for multiple sites.
Ordering the NP7-12S: What UK Buyers Need to Know
We keep the NP7-12S in stock and ready for same-day dispatch with next-day UK delivery. Trading since 2004, our established supplier relationships with Yuasa allow us to offer competitive pricing passed directly to you.
Both trade and public customers can order from us. NHS trusts, schools, universities, and businesses can purchase via purchase order. Alarm installers, facilities managers, and trade buyers needing multi-unit quantities can use our dedicated trade account and bulk order enquiry facility.
Before you order, confirm two things:
- Terminal type: The standard NP7-12S uses 4.8mm F1 terminals. If your application requires 6.3mm F2 terminals, you need the NP7-12L instead.
- Flame retardancy: If you are replacing a battery in a fire alarm system, check whether the existing battery is the NP7-12FR flame-retardant variant. If it is, you must order the FR version, not the standard NP7-12S.
Final Thoughts
The Yuasa NP7-12S is a reliable, well-specified 12V 7Ah VRLA AGM battery with a proven track record across alarm, UPS, emergency lighting, and medical applications. The 'S' suffix is not a cause for concern; it is identical to the NP7-12 in every practical respect.
Before ordering, confirm your terminal size (F1 vs F2) and check whether your application requires the flame-retardant NP7-12FR variant. Getting this right the first time avoids a return and keeps your system compliant.
Trade and bulk buyers can take advantage of our trade account or bulk enquiry facility for volume pricing. For everyone else, order online with confidence: same-day dispatch, next-day delivery, and pricing that reflects over 20 years of direct supplier relationships with hardwarexpress
