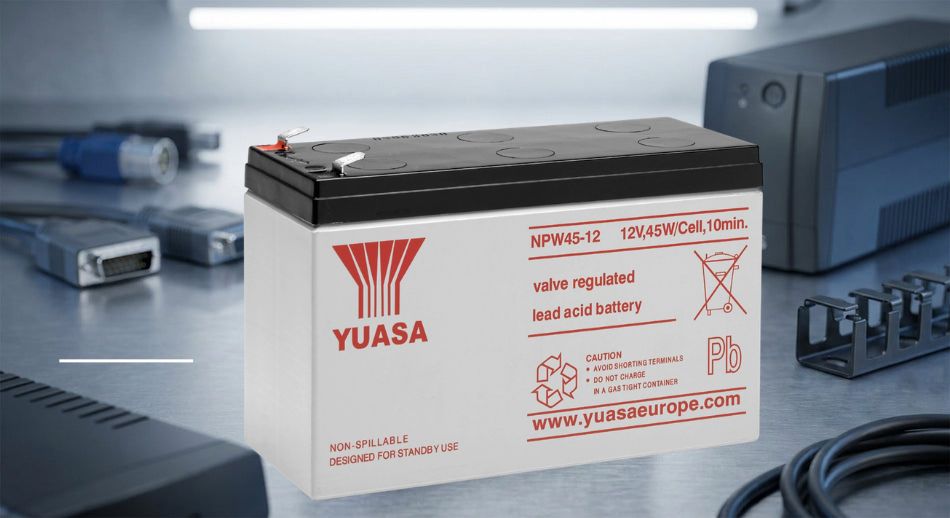

What Is the Yuasa NPW45-12 Battery?
The Yuasa NPW45-12 is a 12V Valve Regulated Lead Acid (VRLA) battery built with Absorbed Glass Mat (AGM) technology. Manufactured by Yuasa, one of the most recognised battery brands worldwide, it is designed specifically for high-rate discharge applications where reliable backup power is non-negotiable.
The model name tells you exactly what it does: "45W" refers to 45 watts per cell delivered over a 10-minute discharge to 1.60V per cell. This is not a simple amp-hour rating. You may also see it listed under the alternate part number NP45W/12 by UK distributors.
With a EUROBAT classification of 3 to 5 years Standard Commercial and a design life of up to 5 years, this is a specialist battery built for critical backup power. It is trusted by facilities managers, alarm engineers, and IT teams across the UK for UPS systems, fire alarm panels, and emergency lighting installations.
NPW45-12 Key Specifications at a Glance
Before purchasing, it helps to have the full technical picture. Here are the key specifications drawn from Yuasa's official datasheet:
- Nominal voltage: 12V
- Construction: AGM VRLA with Lead Calcium Grids
- Capacity: 8.5Ah at 20-hour rate (30°C); 7.42Ah at 10-hour rate (20°C)
- Dimensions: Length 151mm, Width 65mm, Case height 94mm, Overall height 97.5mm
- Weight: Approximately 2.7kg
- Terminal type: Faston 250 (F2 / 6.35mm)
- Container: ABS (UL94HB)
- Maximum continuous discharge: 42A
- Short-circuit current: 105A for 5 seconds without deterioration
- Self-discharge rate: Approximately 3% per month at 20°C
- Operating temperature: -15°C to +50°C (preferred range: +10°C to +30°C)
- Orientation: Any position except continuous inverted use
A common point of confusion: different capacity figures appear across retailers because the 8.5Ah rating is measured at 30°C over 20 hours, while the 7.42Ah figure uses a 10-hour rate at 20°C. Both are correct; they reflect different test conditions. Always check which standard a retailer is quoting before comparing.
Why the NPW45-12 Is Not a Standard 12V 7Ah Battery
This is the single most important point for anyone buying a replacement battery. The NPW45-12 is a high-rate discharge battery. It delivers up to 50% more power (measured in watts) over short durations compared to the standard Yuasa NP model range. That extra burst of energy is exactly what UPS systems and fire alarm panels need during a mains failure.
Substituting a standard NP-series battery into a UPS or fire alarm panel is a genuine safety and compliance risk. The system may not deliver adequate backup power during an emergency, leaving critical equipment unprotected.
The distinction comes down to how the battery is rated. NPW-series batteries are watt-rated for short, high-demand discharges. NP-series batteries are amp-hour-rated for longer, lower-current applications. The application dictates which type must be used.
If you need an equivalent, it must also be a high-rate discharge type. Approved alternatives include the Powervolt HV9-12, CSB HR1234W F2, and CSB UPS12460 F2. Standard 12V 7Ah batteries are not interchangeable. This distinction is especially critical for NHS trusts, government buildings, and educational institutions where backup power compliance is mandatory.
NPW45-12 Applications: Where Is This Battery Used?
The NPW45-12 serves a wide range of backup power applications:
- UPS systems: Protecting servers, networking equipment, and workstations from power interruptions
- Security alarm panels: Maintaining protection during mains failure
- Fire alarm panels: Ensuring life-safety systems remain operational
- Emergency lighting: Powering escape route illumination during outages
- Telecommunications equipment: Keeping communication infrastructure online
Secondary applications include mobility scooters, stair lifts, lawnmowers, and portable device power backup, though the primary demand centres on critical infrastructure.
AGM construction makes the NPW45-12 particularly well suited to indoor and enclosed environments. There is no free acid, no requirement for gas venting, and the battery can be mounted in any orientation (except continuously inverted). This makes it ideal for alarm panels, server rooms, and emergency lighting enclosures.
With the UK's ongoing data centre expansion and the growing number of smart building systems and IoT-connected security devices, demand for reliable NPW45-12-class batteries continues to rise. NHS trusts, local government, schools, and universities all rely on this battery type for life-safety systems.
NPW45-12 as the Official Replacement for the Yuasa REW45-12
If you are searching for a Yuasa REW45-12, the answer is straightforward: the NPW45-12 is its designated UK replacement. The REW45-12 has been discontinued and is no longer available in the UK market.
The NPW45-12 is a direct, drop-in replacement with equivalent performance. No modifications are needed. If your existing system specifies a REW45-12, order the NPW45-12.
For reference, the full list of approved equivalents is:
- Yuasa REW45-12 (discontinued)
- Powervolt HV9-12
- CSB HR1234W F2
- CSB UPS12460 F2
All replacements must be high-rate discharge types. Standard amp-hour-rated batteries will not provide the same performance.
Timing is also relevant here. Batteries fitted between 2020 and 2022 are now entering their 3 to 5 year replacement window. If you are a maintenance engineer or facilities manager responsible for UPS or alarm system upkeep, now is the time to audit your installed battery stock and plan replacements before performance degrades.
Storage, Charging, and Maintenance Best Practices
The NPW45-12 uses a gas recombination system, making it virtually maintenance-free. There is no electrolyte to top up, and no regular servicing is required beyond periodic inspection.
For standby and UPS applications, the recommended float charging voltage is 2.275V per cell, equating to 13.65V for a 12V battery. Maintaining this voltage keeps the battery at full readiness without overcharging.
With a self-discharge rate of approximately 3% per month at 20°C, batteries held in storage should be recharged every six months. Failing to do so risks sulphation, which permanently reduces capacity.
Store batteries in a cool, dry environment within the -15°C to +50°C operating range. Avoid prolonged storage above 30°C, as elevated temperatures accelerate self-discharge and shorten overall lifespan. The battery can be operated in any orientation, but continuous inverted use should be avoided.
When batteries reach end of life, proper disposal is required. The WEEE Directive and UK Battery Regulations mandate recycling of lead-acid batteries. This is particularly relevant for NHS, government, and education procurement teams replacing batteries in bulk. Ensure your disposal process is compliant.
Buying the NPW45-12 in the UK: Trade and Retail Options
Genuine Yuasa NPW45-12 batteries are available from approximately £18.33 ex VAT, with prices from multiple UK retailers starting from around £37.25 inc VAT. Prices vary, so confirm you are purchasing a genuine Yuasa product rather than a generic alternative.
At hardwarexpress, we have been trading since 2004 and stock the full Yuasa range. High stock levels mean we can offer same-day dispatch with next-day delivery via reputable carriers. For local trade customers, click-and-collect is available from our Coventry store.
If you are an alarm installer, facilities manager, or UPS maintenance engineer buying in volume, our dedicated trade accounts and large order enquiry service are designed for you. We supply businesses, NHS trusts, schools, universities, and government organisations across the UK.
One final check before you buy: confirm the battery you are ordering is a high-rate discharge type (NPW, HR, or HV series). A standard NP-series or generic 12V 7Ah battery will not provide adequate backup in UPS or life-safety applications. This is a safety-critical distinction.
For context, AGM batteries held 42.36% of the global VRLA market share in 2025, reflecting strong and growing demand for this proven technology across UPS, telecom, and renewable energy sectors.
Is the NPW45-12 the Right Battery for Your Application?
The decision is straightforward. If your original battery is a high-rate discharge type (NPW, REW, HR, or HV series), the NPW45-12 or one of its approved equivalents is the correct replacement. Do not substitute with a standard NP-series or generic 12V 7Ah battery in UPS or life-safety applications.
For trade and B2B buyers, we offer bulk pricing, trade accounts, and expert compatibility advice. With over 20 years of experience supplying batteries to businesses, NHS trusts, schools, and government organisations across the UK, hardwarexpress is a partner you can rely on.
View the NPW45-12 on our product page or contact our team for expert advice on compatibility, bulk orders, and trade account setup.
