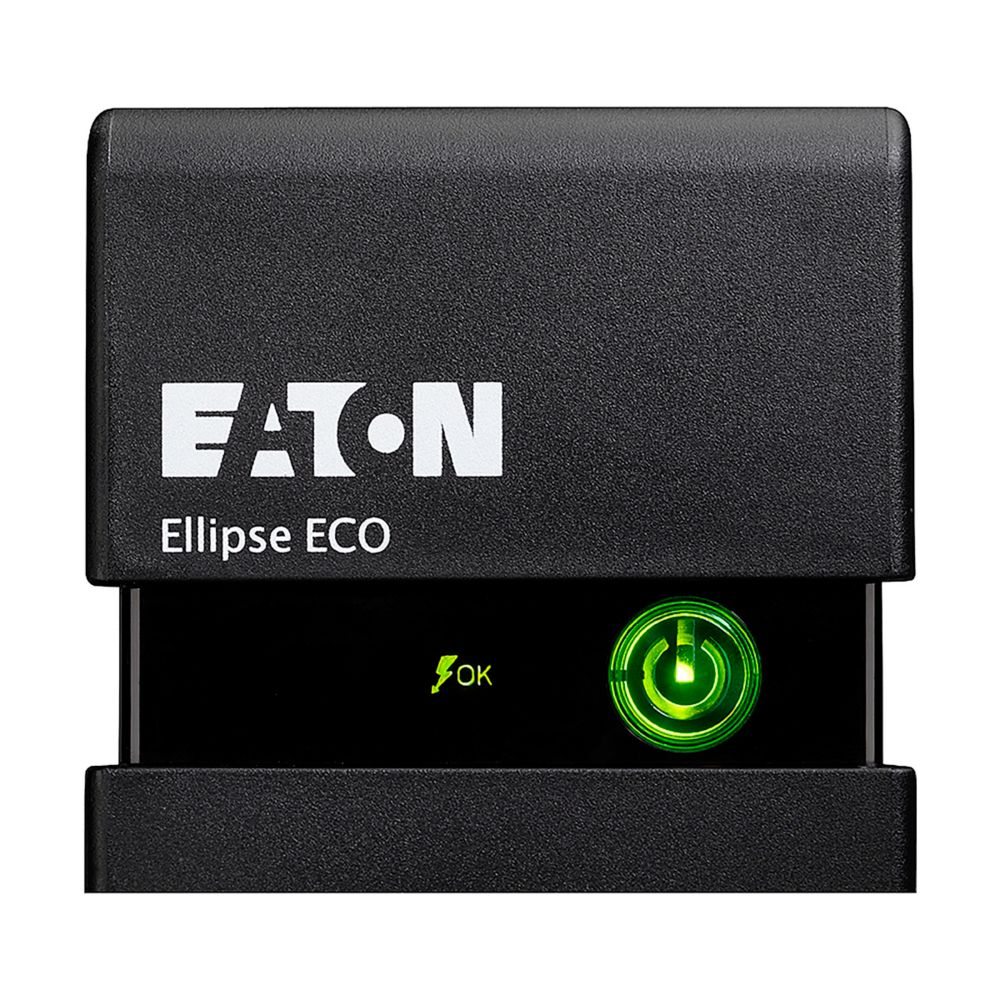

Ellipse ECO 1600 USB IEC is a off-line UPS. As well as providing a power supply backed up by a battery to keep equipment operating during a power failure,the Ellipse Eco also provides effective protection against damaging surges.

The Eco Control function automatically disables peripherals when the master device is turned off in order to save up 25 % more energy compared to previous generation of UPS. This unit can either be placed horizontally,19 inch rack mounted or wall mounted. The Ellipse Eco also includes the Eaton Intelligent Power Manager software. Ellipse ECO is an ideal protection for all business computers and electronic devices in an office environment.

Main Specifications
Product Description Eaton Ellipse ECO 1600 USB IEC - UPS - 1000 Watt - 1600 VA
Device Type UPS - rack-mountable / external
Rack Size 19"- 2U
Weight 7.8 kg
Input Voltage AC 230 V
Output Voltage AC 220/230/240 V
Power Capacity 1000 Watt / 1600 VA
Input Connectors 1 x power
Output connectors 4 x power IEC 60320 (UPS and surge) ¦4 x power IEC 60320 (surge)
Battery Lead Acid
Run Time (Up To) 11 min at half load
Networking USB
System Requirements Linux,Apple MacOS X,Microsoft Windows Vista / XP / 7
Dimensions (WxDxH) 8.1 cm x 31.2 cm x 30.5 cm

This product is covered by a manufacturer 2 Year Warranty
